Right Side of Passenger Compartment (4-Door)
Right Side of Passenger Compartment (4-Door)

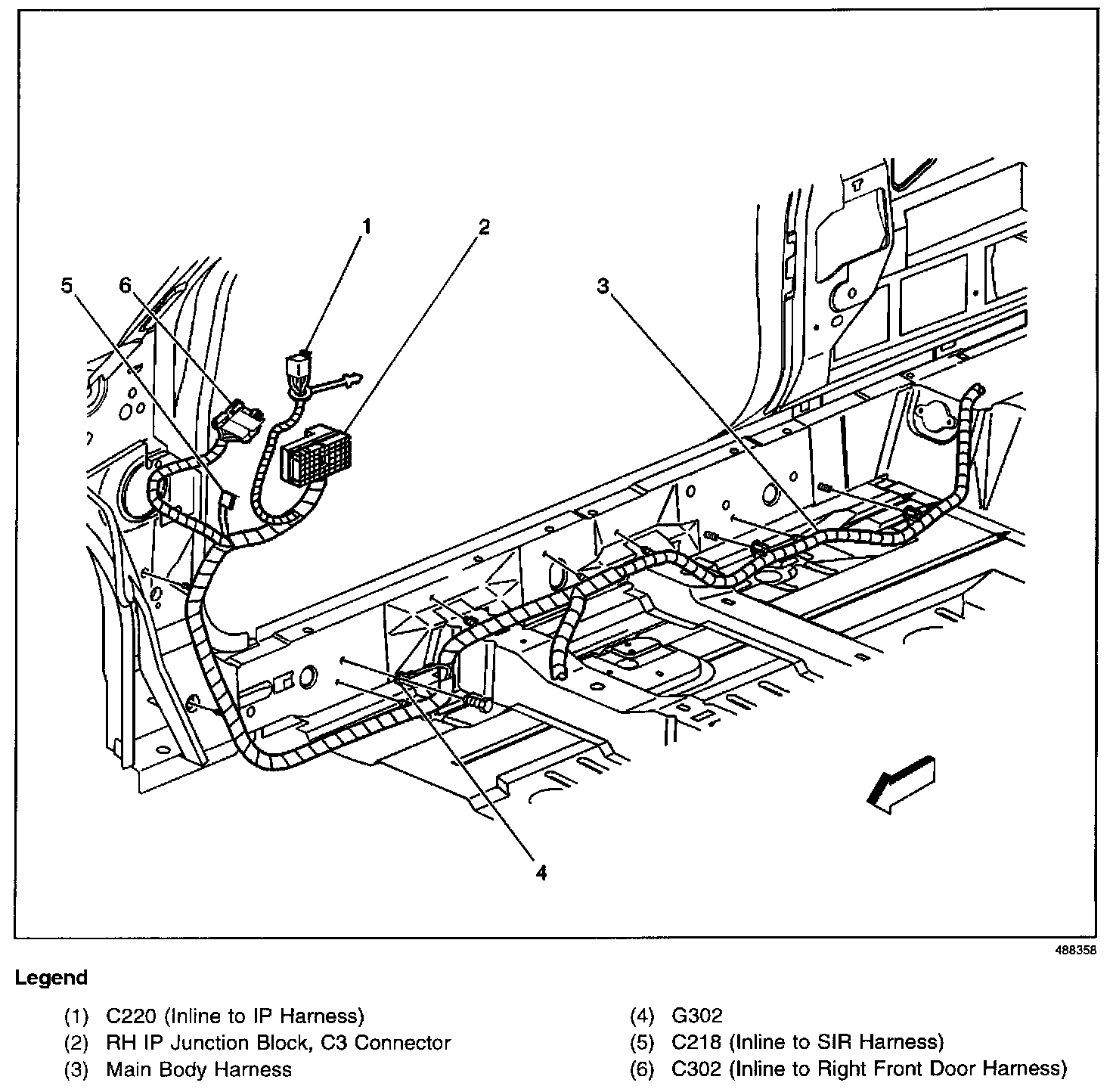

Harness Routing Views (Right Side Of Passenger Compartment (4-Door)):
