Right Side of Rear Compartment (4-Door)

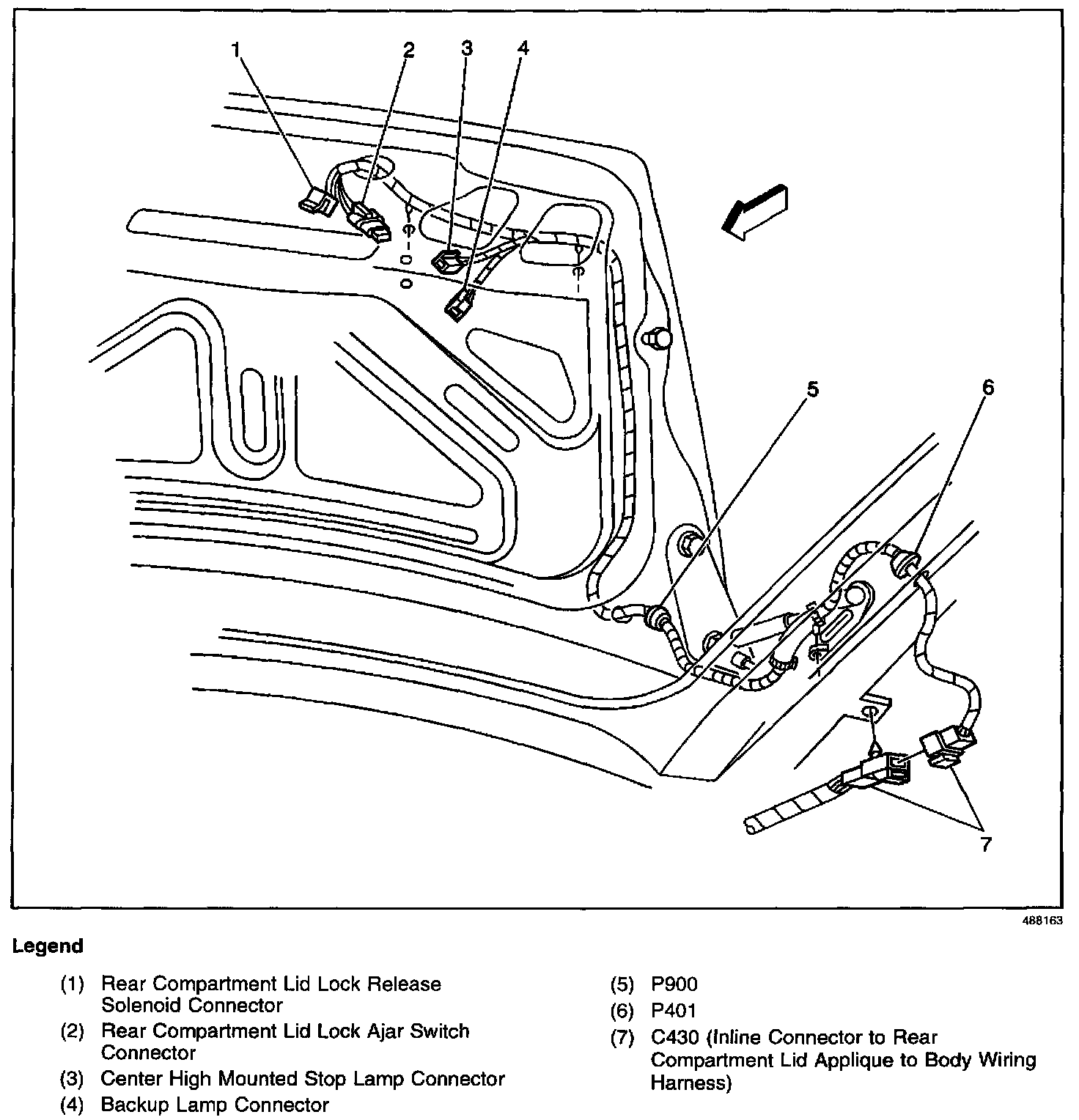

Harness Routing Views (Right Side Of Rear Compartment (4-Door)):
