Exhaust Seal Replacement

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

Notice: Refer to Catalytic Converter Movement Notice in Service Precautions.

Important: Use caution handling the pipe that contains an oxygen sensor. Do not cut the wire. For removal or repositioning disconnect the connector.

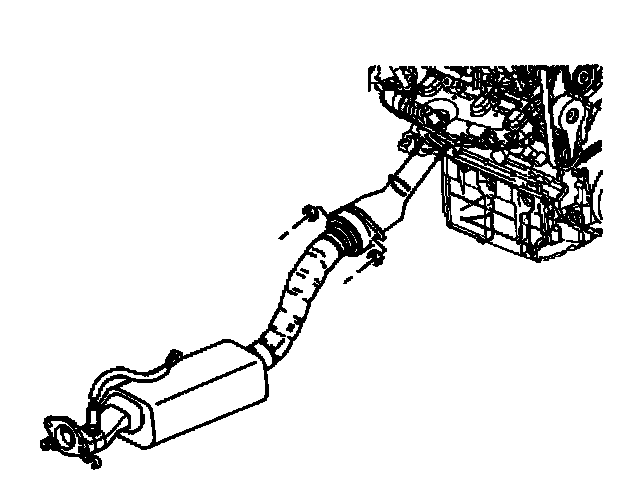

2. Remove the right exhaust manifold pipe stud nuts from the exhaust manifold studs.

Important: Suitably support the exhaust system where hangers are removed.

3. In order to remove the exhaust seal disconnect any hangers necessary to reposition the exhaust system.
4. Reposition the exhaust system.

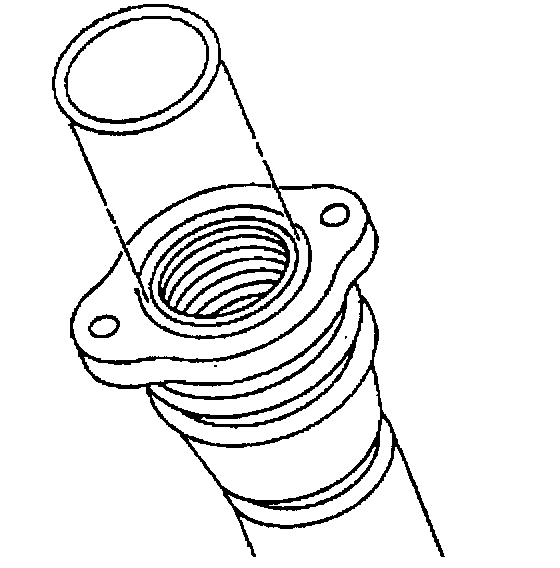

5. Remove the exhaust manifold pipe gasket.

Installation Procedure

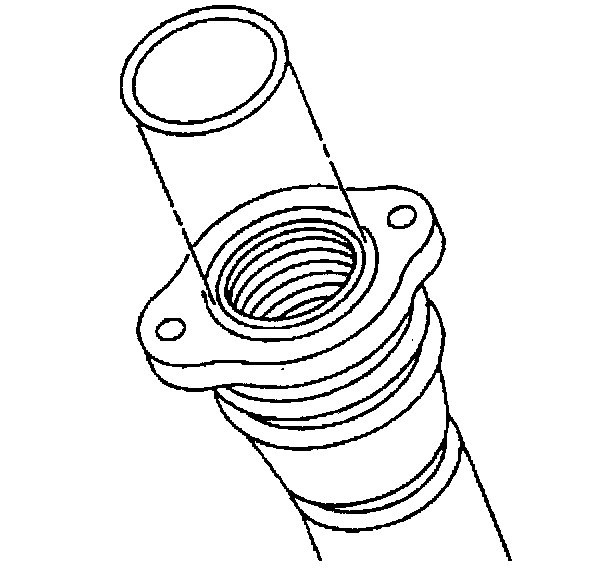

1. Install the exhaust manifold pipe gasket.





2. Return the exhaust system to the proper position.
3. Connect any hangers.
4. Remove the exhaust system support.

Notice: Refer to Fastener Notice in Service Precautions.

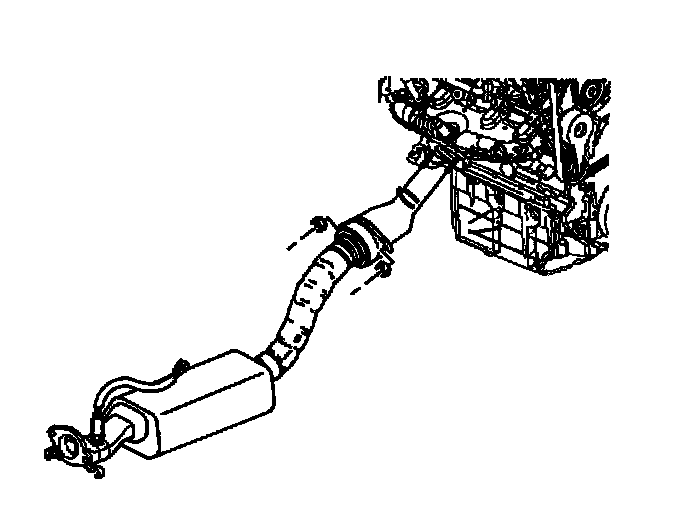

5. Install the right exhaust manifold pipe stud nuts to the exhaust manifold pipe studs.
Tighten the right exhaust manifold pipe stud nuts to 35 Nm (26 ft. lbs.)
6. Inspect the exhaust system for leaks and underbody contact.
7. Lower the vehicle.
