Compressor Clutch Relay: Service and Repair

COMPRESSOR RELAY REPLACEMENT

REMOVAL PROCEDURE




1. Open the hood.

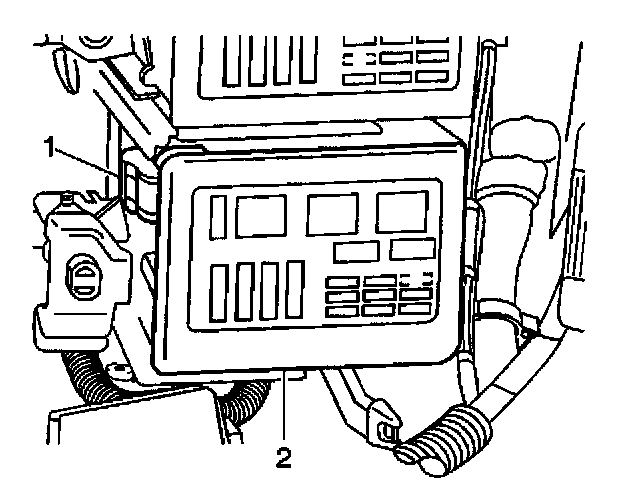

2. Release the retaining clip (1) and remove the engine wiring harness junction block (BOTTOM) cover (2).

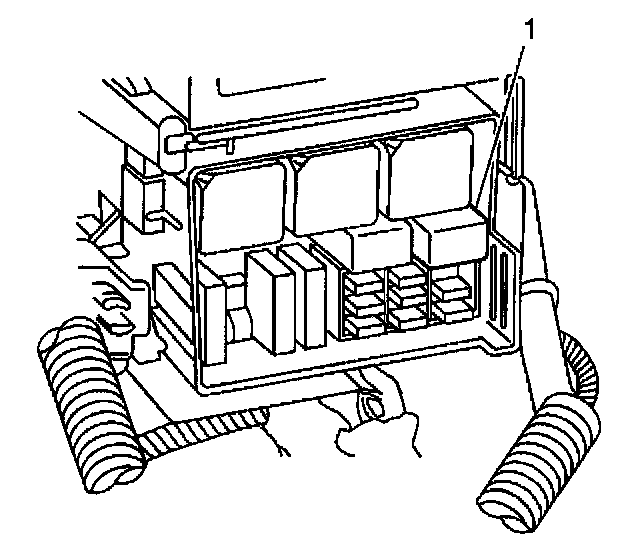

A/C Compressor Relay (A/C CMPR) (1) {In The Engine Wiring Harness Junction Block}:

3. Remove the A/C compressor relay (A/C CMPR) (1) from the engine wiring harness junction block (BOTTOM).

INSTALLATION PROCEDURE

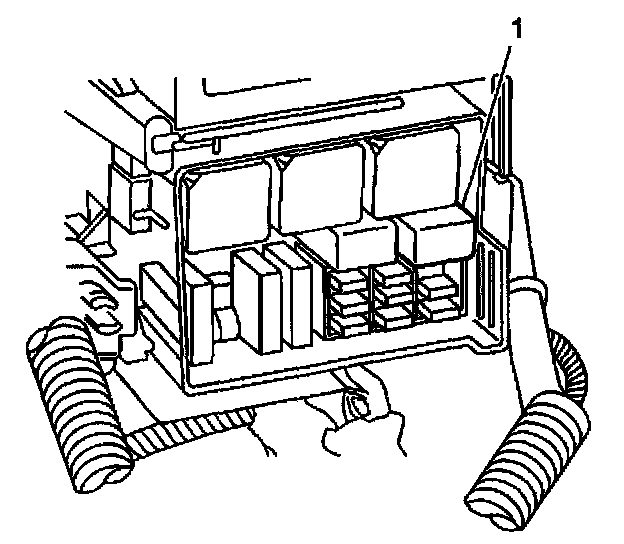

1. Install the A/C compressor relay (A/C CM PR) (1) into the engine wiring harness junction block (BOTTOM).

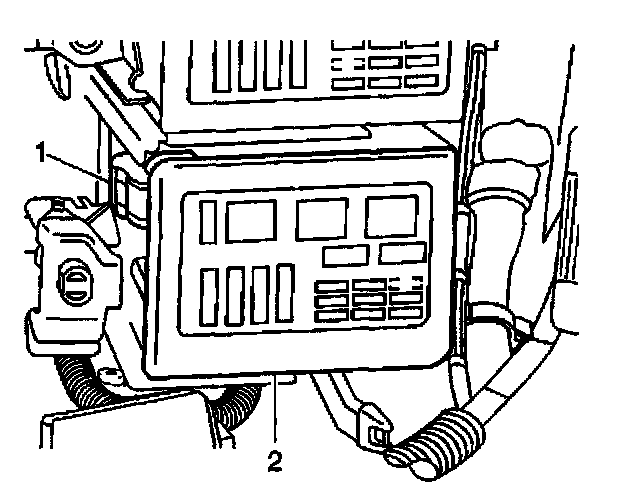

2. Install the engine wiring harness junction block (BOTTOM) cover (2) and secure the retaining clip (1).
3. Close the hood.
