Expansion Block/Orifice Tube: Locations

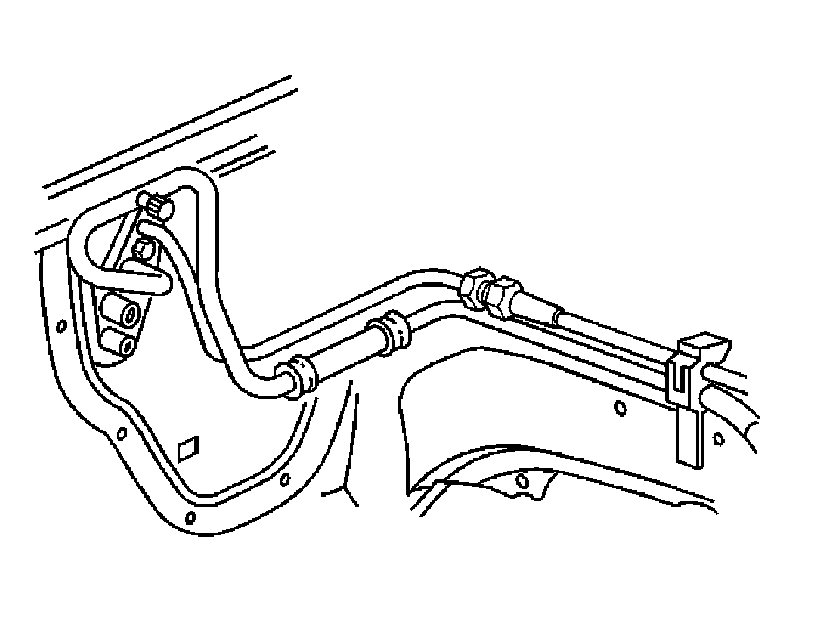

The plastic expansion tube, is located between the condenser outlet and the evaporator inlet.
