Instrument Panel (IP) - Accessory Switch Replacement

Accessory Switch Replacement (SEO)

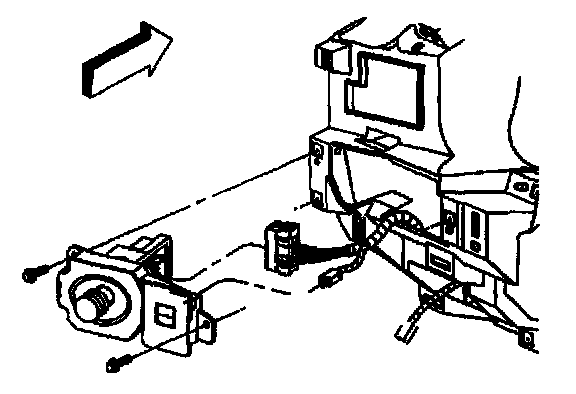

REMOVAL PROCEDURE
1. Remove the instrument panel cluster trim plate bezel.
2. Remove the screws from the accessory switch housing.
3. Remove the accessory switch housing from the instrument panel.
4. Disconnect the electrical connector from the accessory switch.
5. Remove the accessory switch from the accessory switch housing.

INSTALLATION PROCEDURE
1. Install the accessory switch to the accessory switch housing, pressing into place until fully seated.
2. Connect the electrical connector to the accessory switch.
3. Install the accessory switch housing to the instrument panel.
4. Install the accessory switch housing screws.

Tighten
Tighten the accessory housing switch screws to 2 N.m (18 lb in).

5. Install the instrument panel cluster trim plate bezel.
