Tail Lamp Wiring Harness - Routing

File In Section: 08 - Body and Accessories

Bulletin No.: 00-0842-004

Date: July, 2000

INFORMATION

Subject:
Tail Lamp Wiring Harness Routing

Models:
2000 Chevrolet Monte Carlo

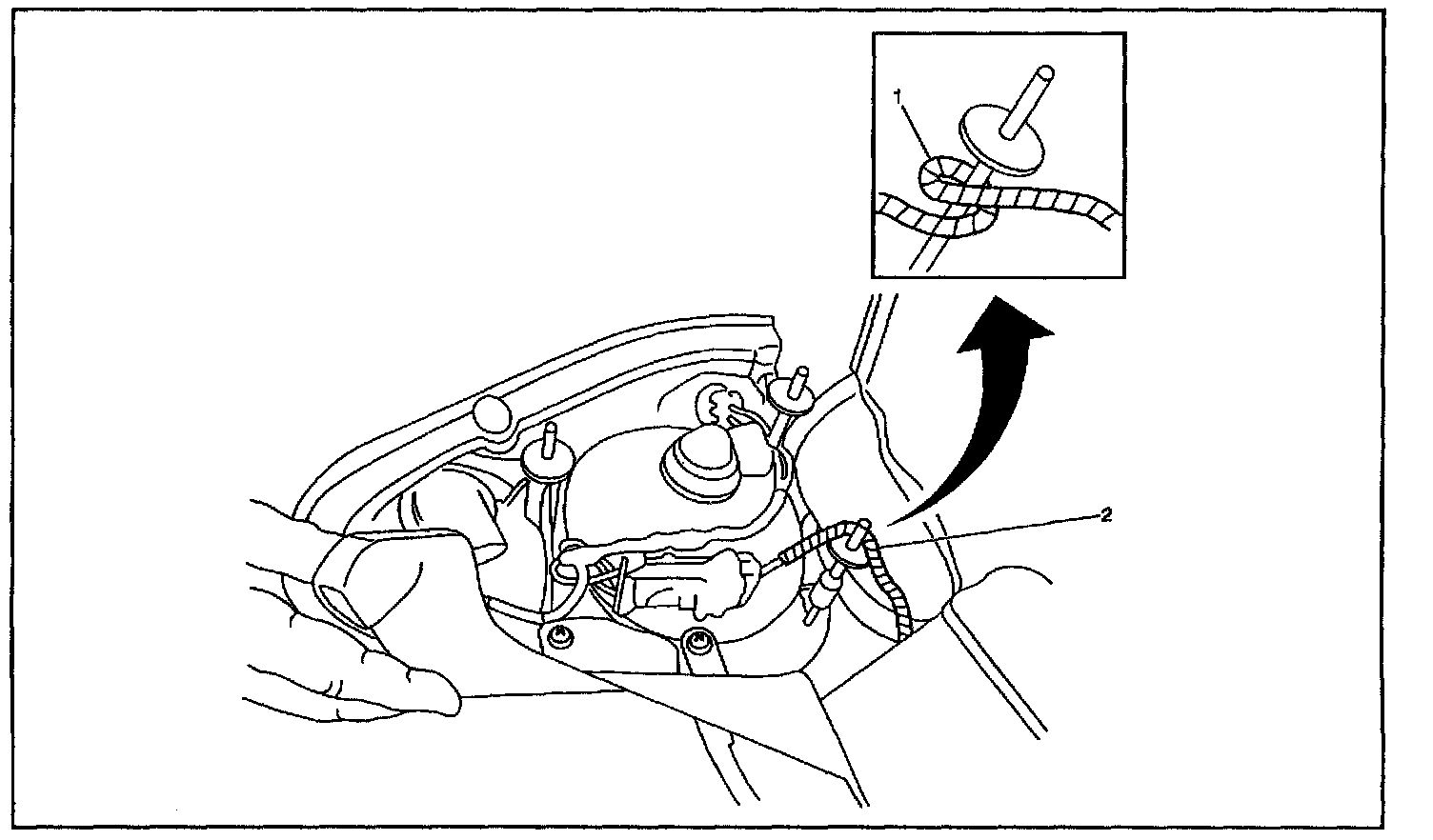

If service or removal of either tail lamp is required, the tail lamp wiring harness must be wrapped around and behind the flange on the lower mounting stud (1) as shown prior to installing the lamp to the vehicle body. Not routing the wiring harness as shown may result in the harness getting trapped (2) between the tail lamp lower mounting stud flange and the body.
