Mirror Replacement - Power Mirror

REMOVAL PROCEDURE

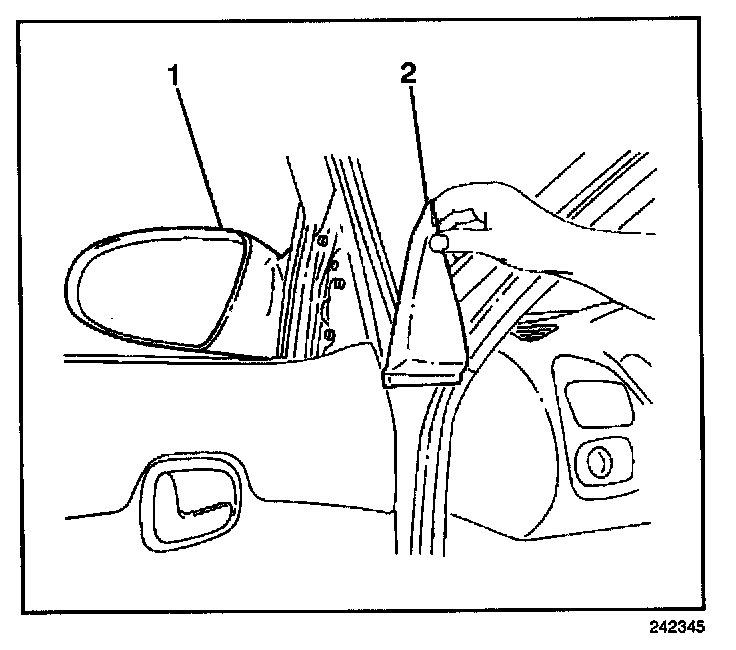

1. Unclip and remove the inner mirror garnish (2) from the door.




2. Remove the front side door trim.
3. Disconnect the outside rearview mirror electrical connector.

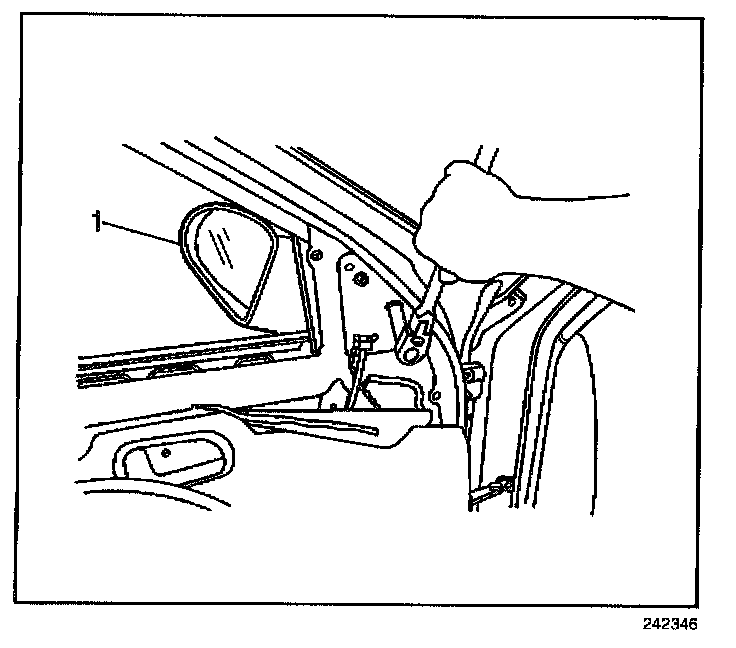

4. Remove the following components from the door:
^ The 3 nuts
^ The outside rearview mirror (1)

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the outside rearview mirror (1) to the door.
Secure the mirror with the 3 nuts.

Tighten
Tighten the outside rearview mirror nuts to 15 N.m (11 lb ft).

2. Connect the outside rearview mirror electrical connector.




3. Install the inner mirror garnish (2) to the door.
4. Install the front side door trim panel.
