Power Mirror Replacement

Power Mirror Replacement

Removal Procedure

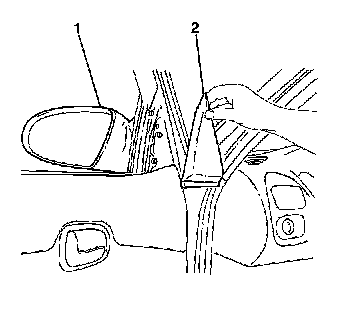

1. Unclip and remove the inner mirror garnish (2) from the door.




2. Remove the front side door trim. Refer to Front Side Door Trim Panel Replacement. Service and Repair
3. Disconnect the outside rearview mirror electrical connector.
4. Remove the following components from the door:

* The 3 nuts
* The outside rearview mirror (1)




Installation Procedure






Notice: Refer to Fastener Notice in Cautions and Notices.

1. Install the outside rearview mirror (1) to the door. Secure the mirror with the 3 nuts.

Tighten the outside rearview mirror nuts to 15 N.m (11 lb ft).

2. Connect the outside rearview mirror electrical connector.




3. Install the inner mirror garnish (2) to the door.
4. Install the front side door trim panel. Refer to Front Side Door Trim Panel Replacement. Service and Repair
