Front Seat Adjuster Track Finish Cover Replacement (Inboard)

Front Seat Adjuster Track Finish Cover Replacement (Inboard)

Removal Procedure





1. Remove the front floor rear console. Refer to Console Replacement (Service and Repair) in Instrument Panel, Gauges and Console.

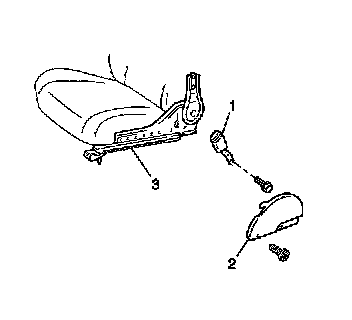

2. Remove the following components from the front seat inboard adjuster (3):

* The screw
* The inboard adjuster finish cover (2)




Installation Procedure





1. Install the inboard adjuster finish cover (2) to the front seat inboard adjuster (3). Secure the cover with the screw.
2. Install the front floor rear console. Refer to Console Replacement (Service and Repair) in Instrument Panel, Gauges and Console.
