Front Seat Replacement - Bucket

Front Seat Replacement - Bucket

Removal Procedure






Caution: Refer to SIR Caution in Cautions and Notices.

1. Disable the SIR system, if equipped with side impact inflatable restraint modules. Refer to Disabling the SIR System in SIR.

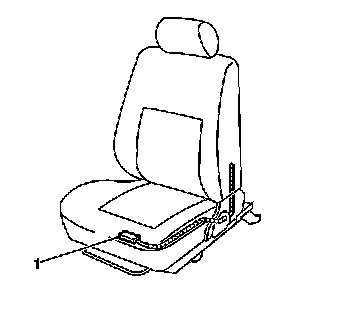

2. Disconnect the side impact inflatable restraint module electrical connector (1), if equipped. The electrical connector is located beneath the seat cushion.

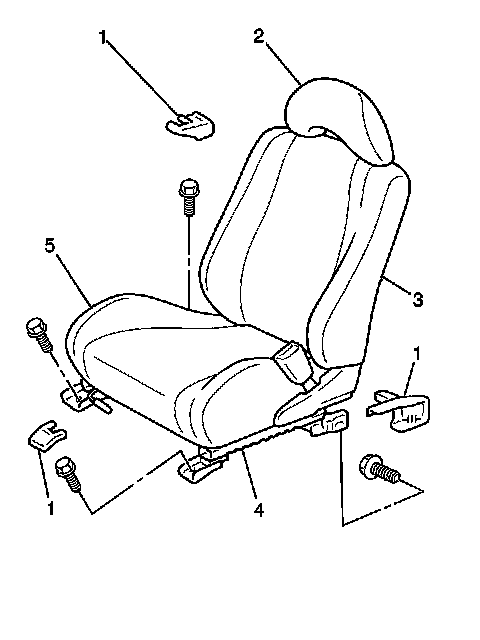

3. Remove the following components from the vehicle:

* The seat bolt finish covers (1)
* The 4 bolts
* The front seat assembly




Installation Procedure






Notice: Refer to Fastener Notice in Cautions and Notices.

1. Install the front seat assembly to the vehicle. Secure the seat with the 4 bolts.

Tighten the front seat assembly bolts to 37 N.m (27 lb ft).

2. Install the seat bolt finish covers (1).




3. Connect the side impact inflatable restraint module electrical connector (1), if equipped.
4. Enable the SIR system, if disabled. Refer to Enabling the SIR System in SIR.
