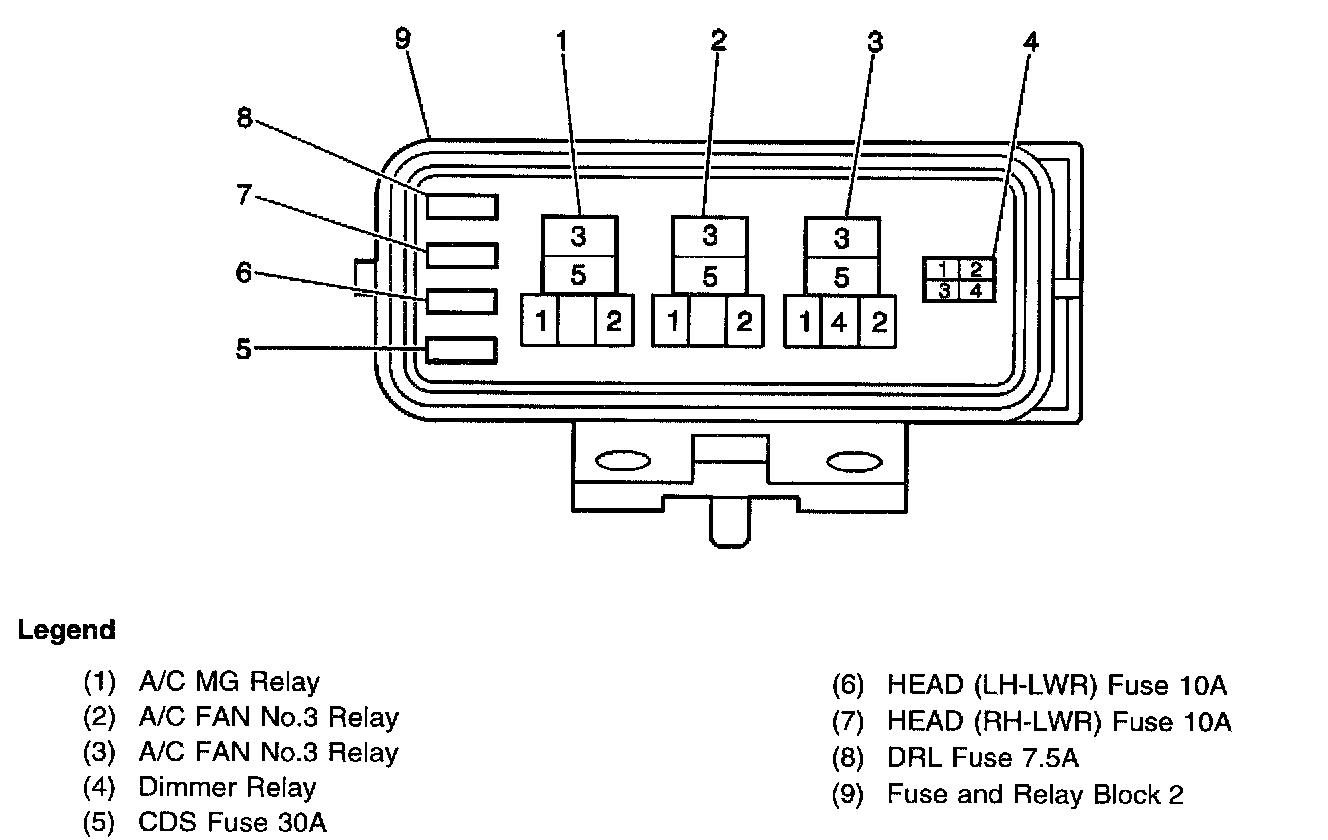

Fuse And Relay Block 2
Fuse And Relay Block 2
Locations View:
Locations View:
Locations View:
Locations View:
LH front engine compartment, left of battery
