Inflatable Restraint Right Front Discriminating Sensor
Inflatable Restraint Right Front Discriminating Sensor

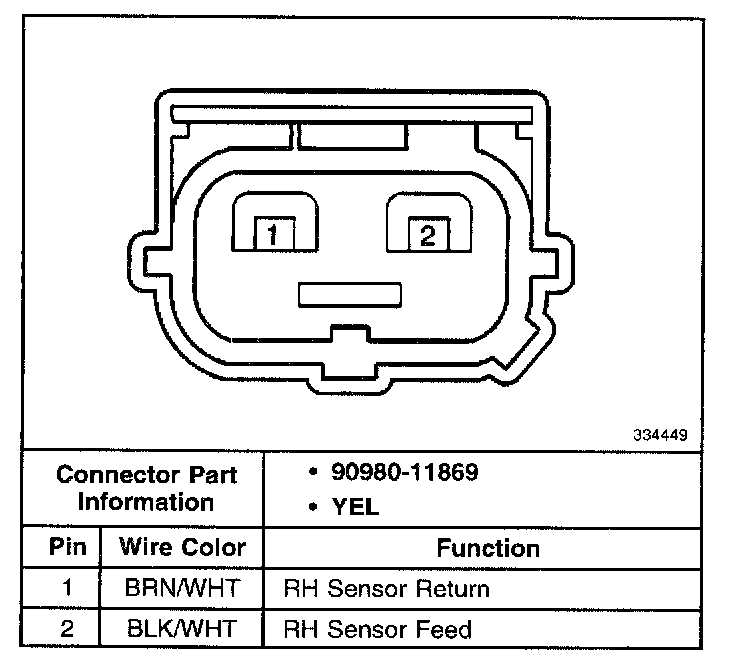

Connector View:
