Audible Warning Device Control Module
>>
Multifunction Alarm Module C2
Multifunction Alarm Module C2

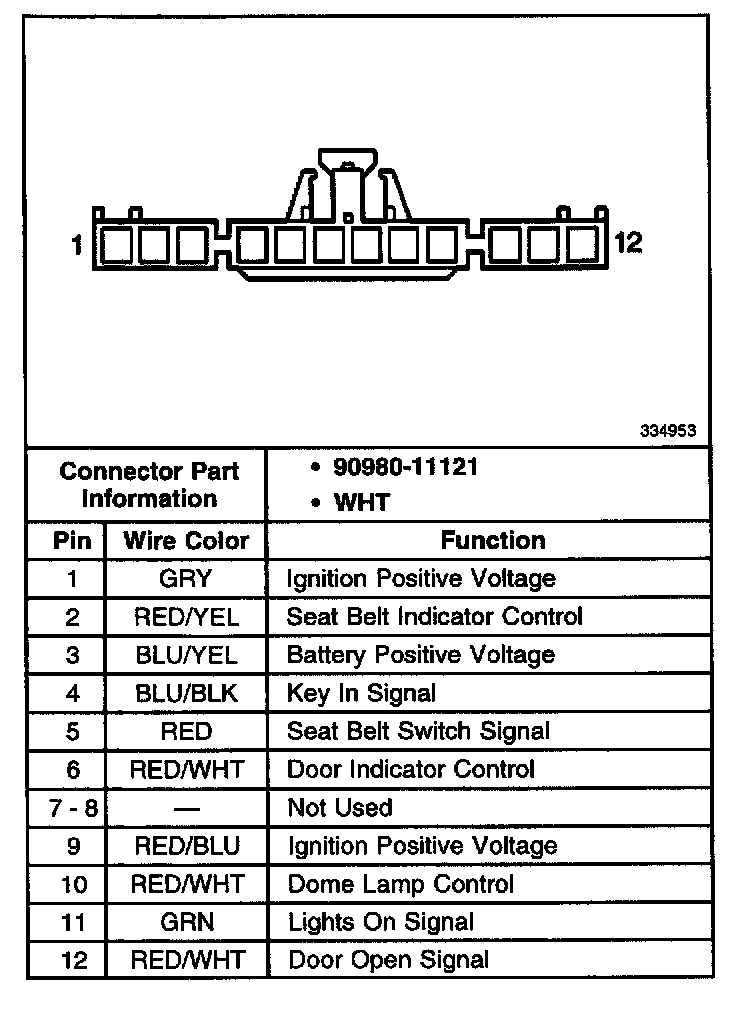

Multifunction Alarm Module C2:
