Home >> Chevrolet >> 2000 >> Prizm L4-108 1.8L DOHC VIN 8 MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Data Link Connector >> Data Link Connector (DLC)

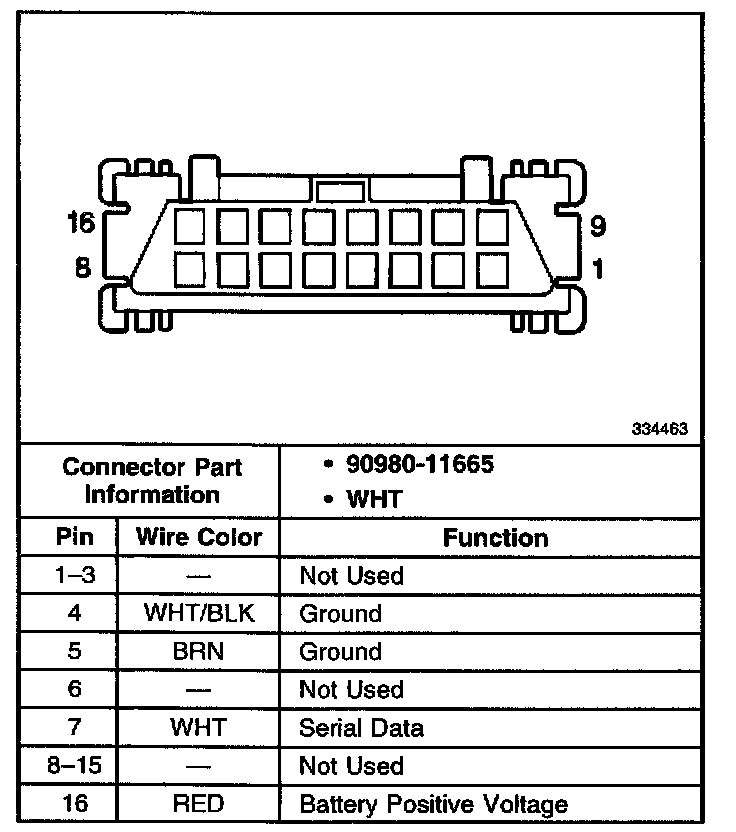

Data Link Connector (DLC)

(DLC) OBD 2:
