Inflatable Restraint (IR) RH Side Impact Sensor

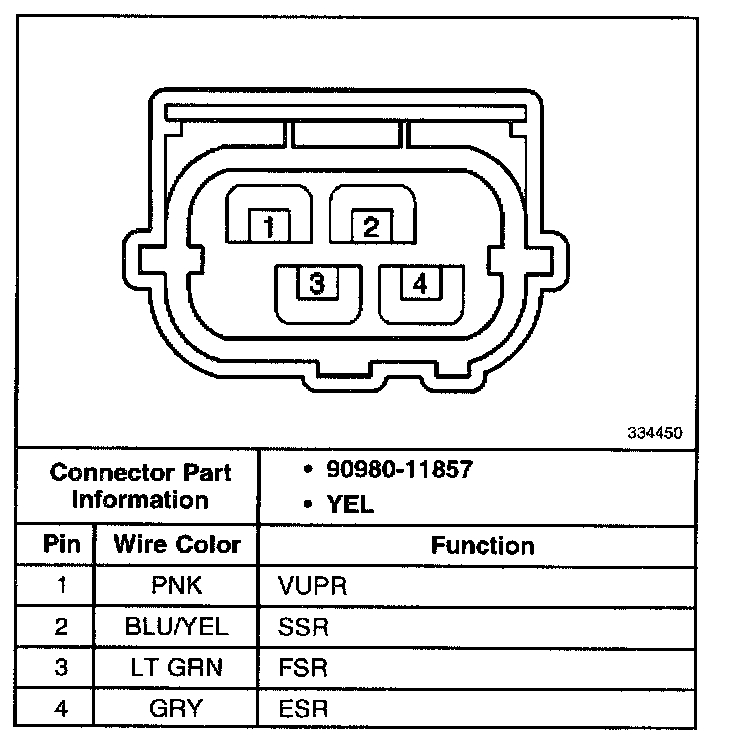

Inflatable Restraint (IR) RH Side Impact Sensor
Connector View:
