Home >> Chevrolet >> 2000 >> Prizm L4-108 1.8L DOHC VIN 8 MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor >> LH Front Window Motor

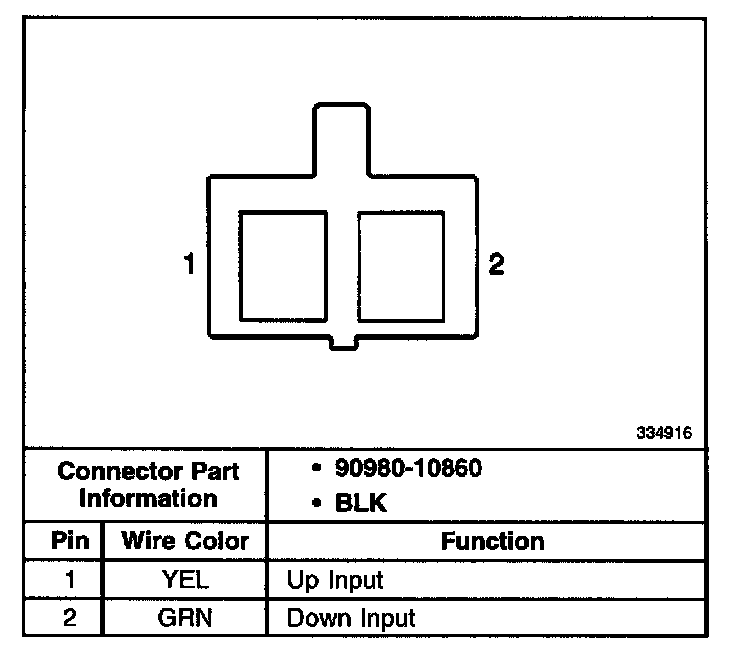

LH Front Window Motor

LH Front Window Motor:
