AIR BAG Indicator and Sensing and Diagnostic Module
AIR BAG Indicator and Sensing and Diagnostic Module

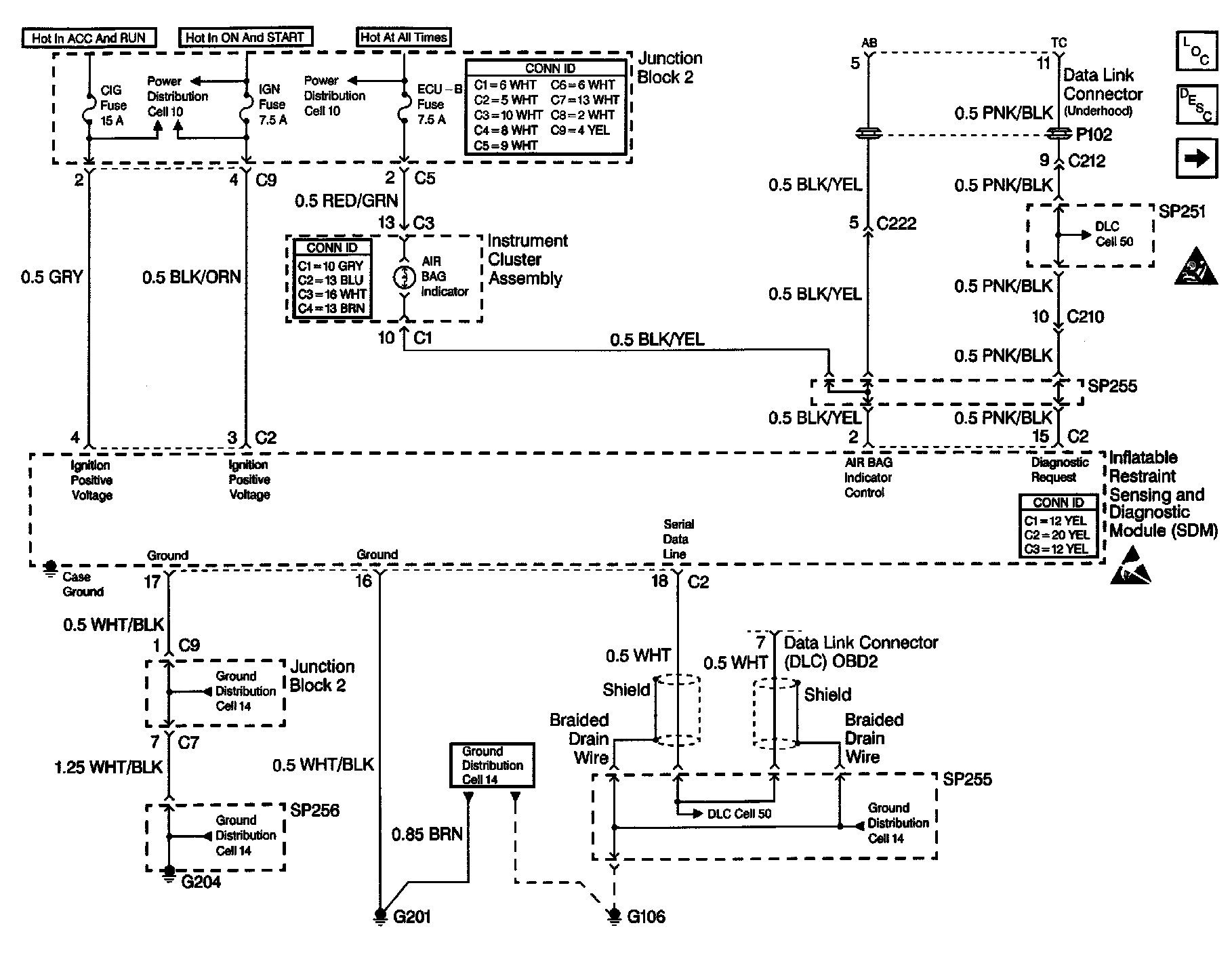

SIR Schematics: AIR BAG Indicator And Inflatable Restraint Sensing And Diagnostic Module:
