Steering Wheel Module Coil, Discriminating Sensors & Seat Belts
Steering Wheel Module Coil, Discriminating Sensors & Seat Belts

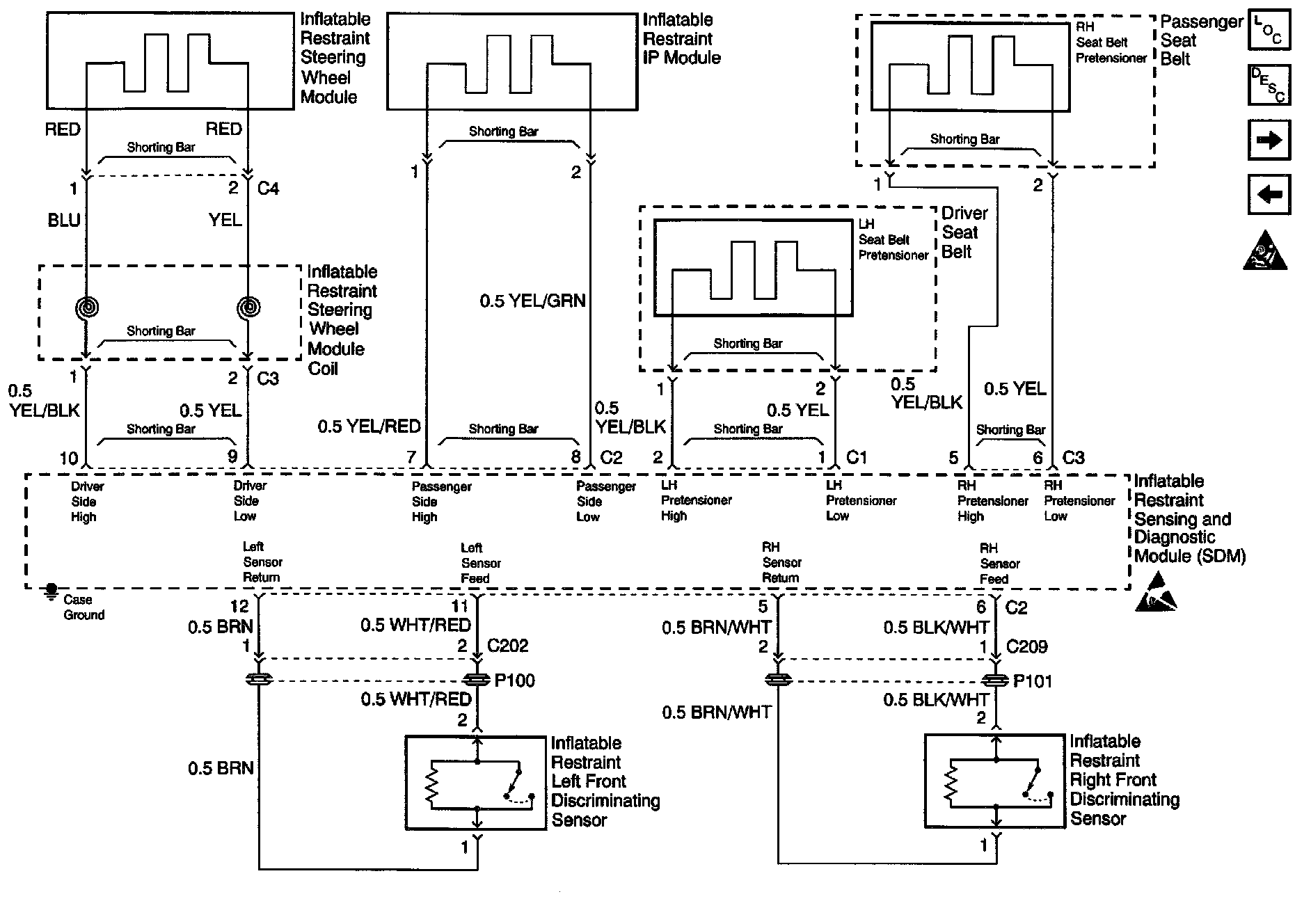

SIR Schematics:Inflatable Restraint Steering Wheel Module Coil, Inflatable Restraint Discriminating Sensors And Seat Belts:
