Indicator CNTRL, ABS LP Driver Relay, ABS WGR Indicator, & BPMV
Indicator CNTRL, ABS LP Driver Relay, ABS WGR Indicator, & BPMV

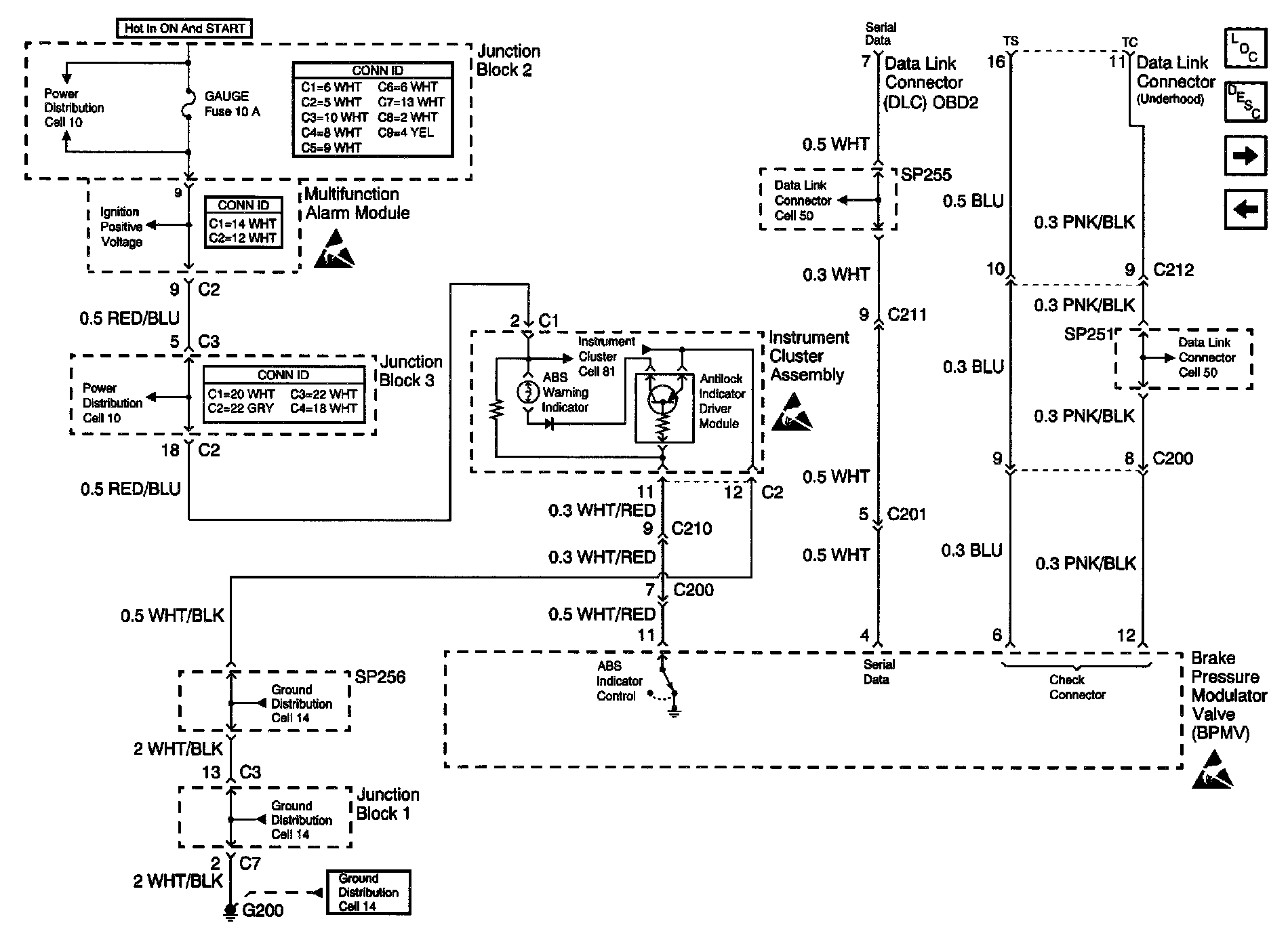

ABS Schematics (Cell 44: ABS Indicator Control, ABS Lamp Driver Relay, ABS Warning Indicator, and BPMV):
