Cruise Control Servo, PNP SW, CPP Interrupt SW, & Stoplamp SW
Cruise Control Servo, PNP SW, CPP Interrupt SW, & Stoplamp SW

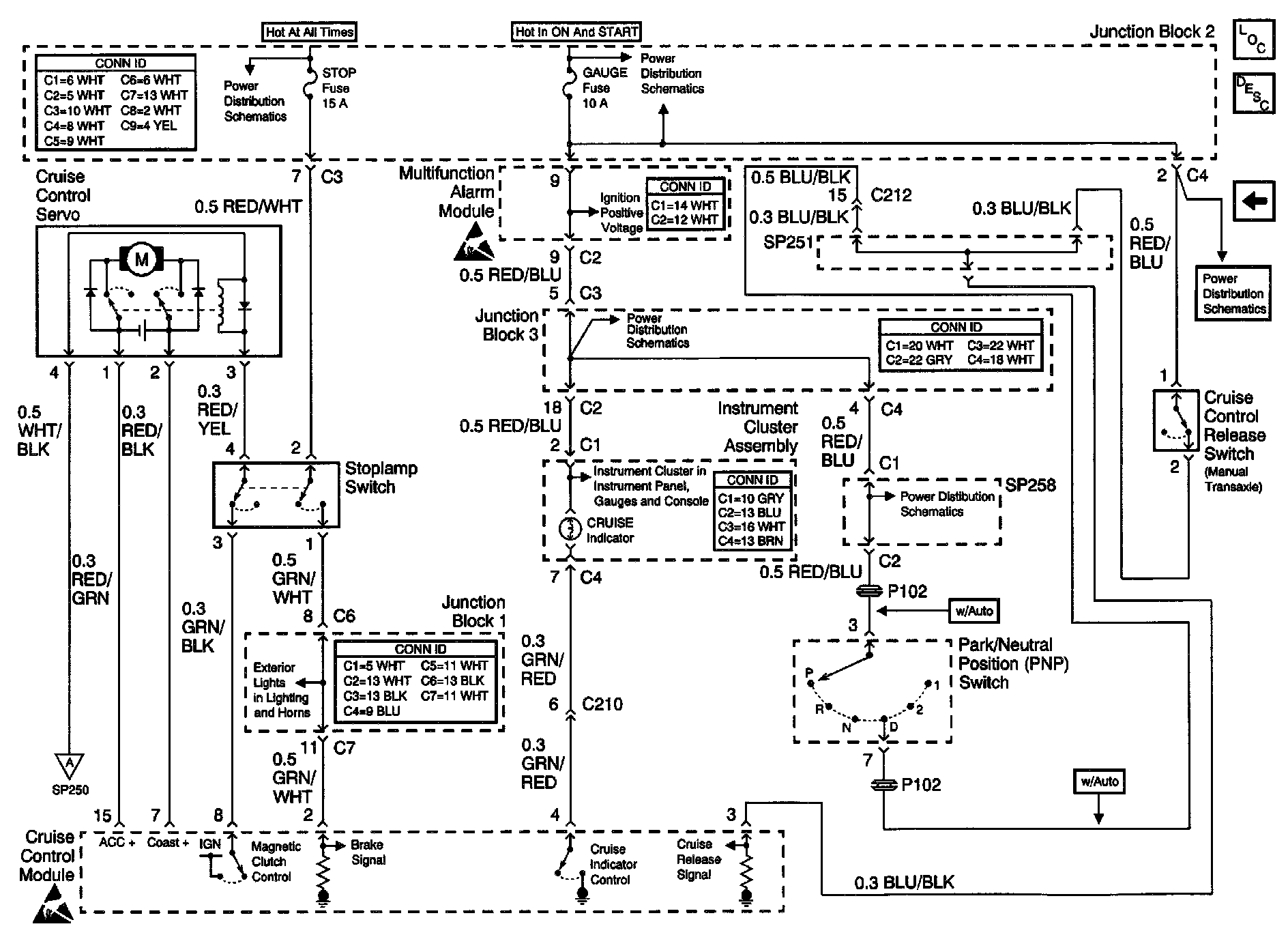

Cruise Control Schematics: Cruise Control Servo, PNP Switch, CPP Interrupt Switch, and Stoplamp Switch:
