IGN Key Alarm SW, Remote CNTRL Door Lock Receiver, & Tail Relay
IGN Key Alarm SW, Remote CNTRL Door Lock Receiver, & Tail Relay

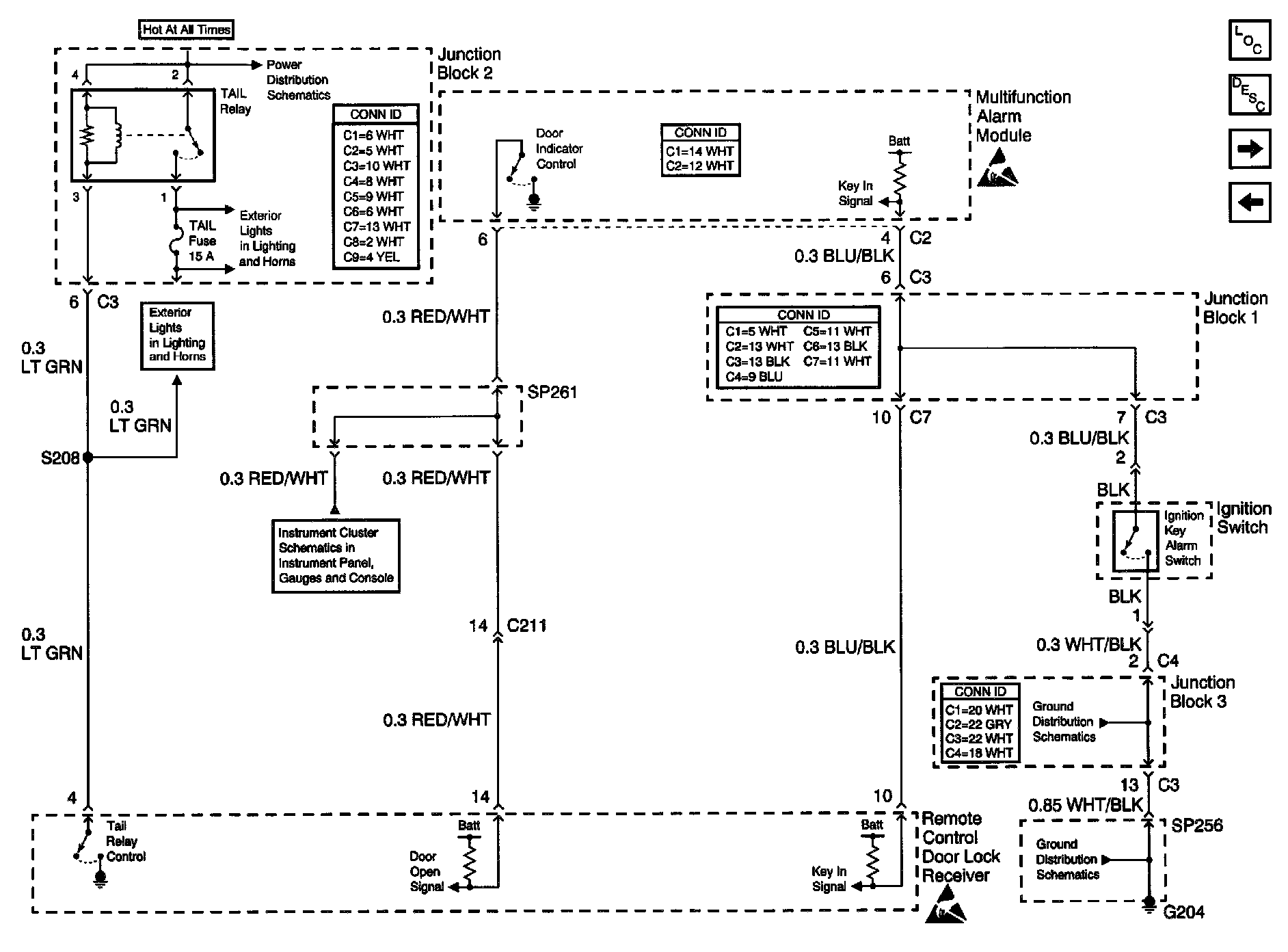

Keyless Entry Schematics: Ignition Key Alarm Switch, Remote Control Door Lock Receiver, and TAIL Relay:
