Remote Control Door Lock Receiver and Door Lock Actuators
Remote Control Door Lock Receiver and Door Lock Actuators

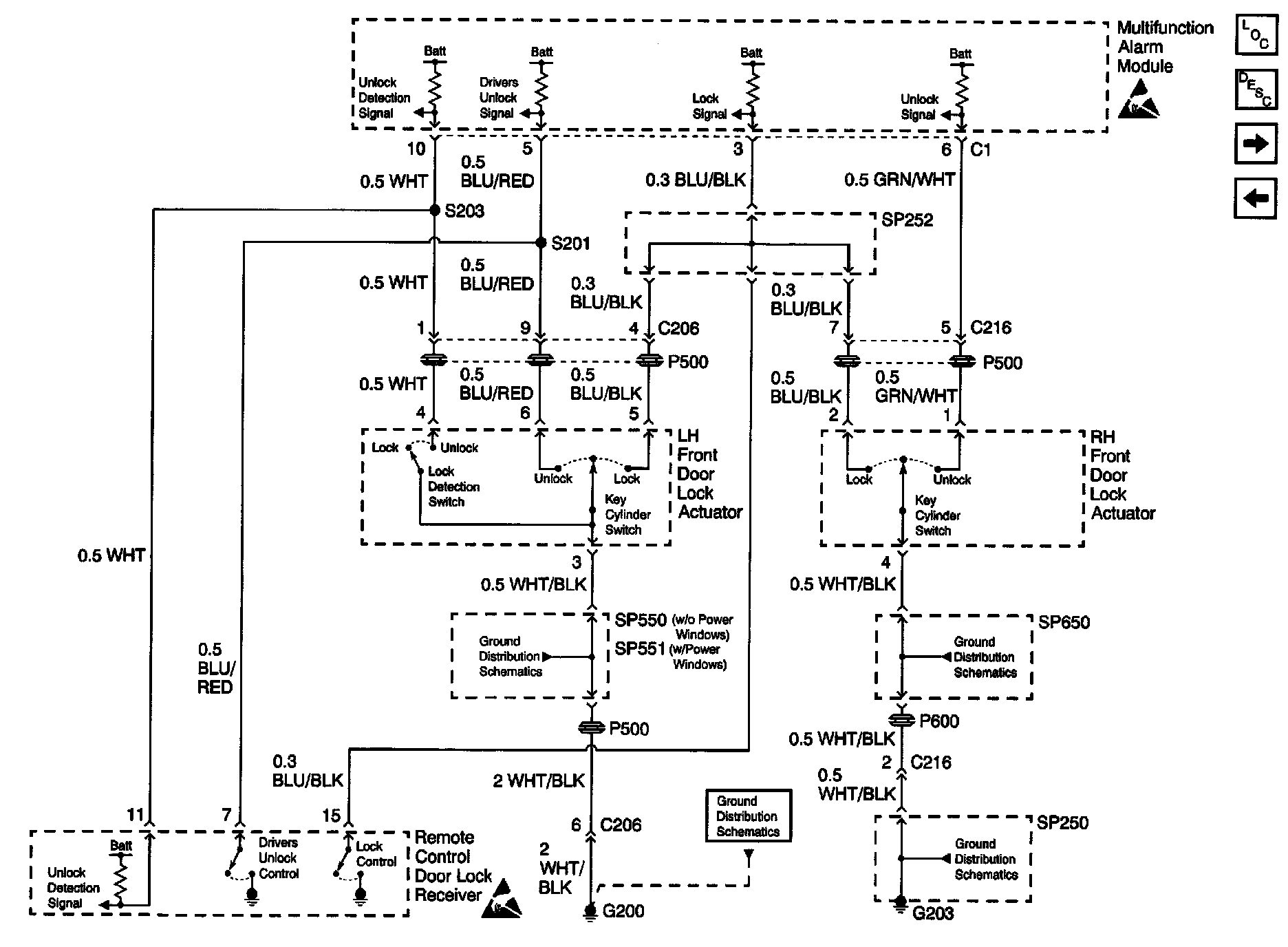

Keyless Entry Schematics: Remote Control Door Lock Receiver and Door Lock Actuators:
