Door Lock Actuators and Multifunction Alarm Module
Door Lock Actuators and Multifunction Alarm Module

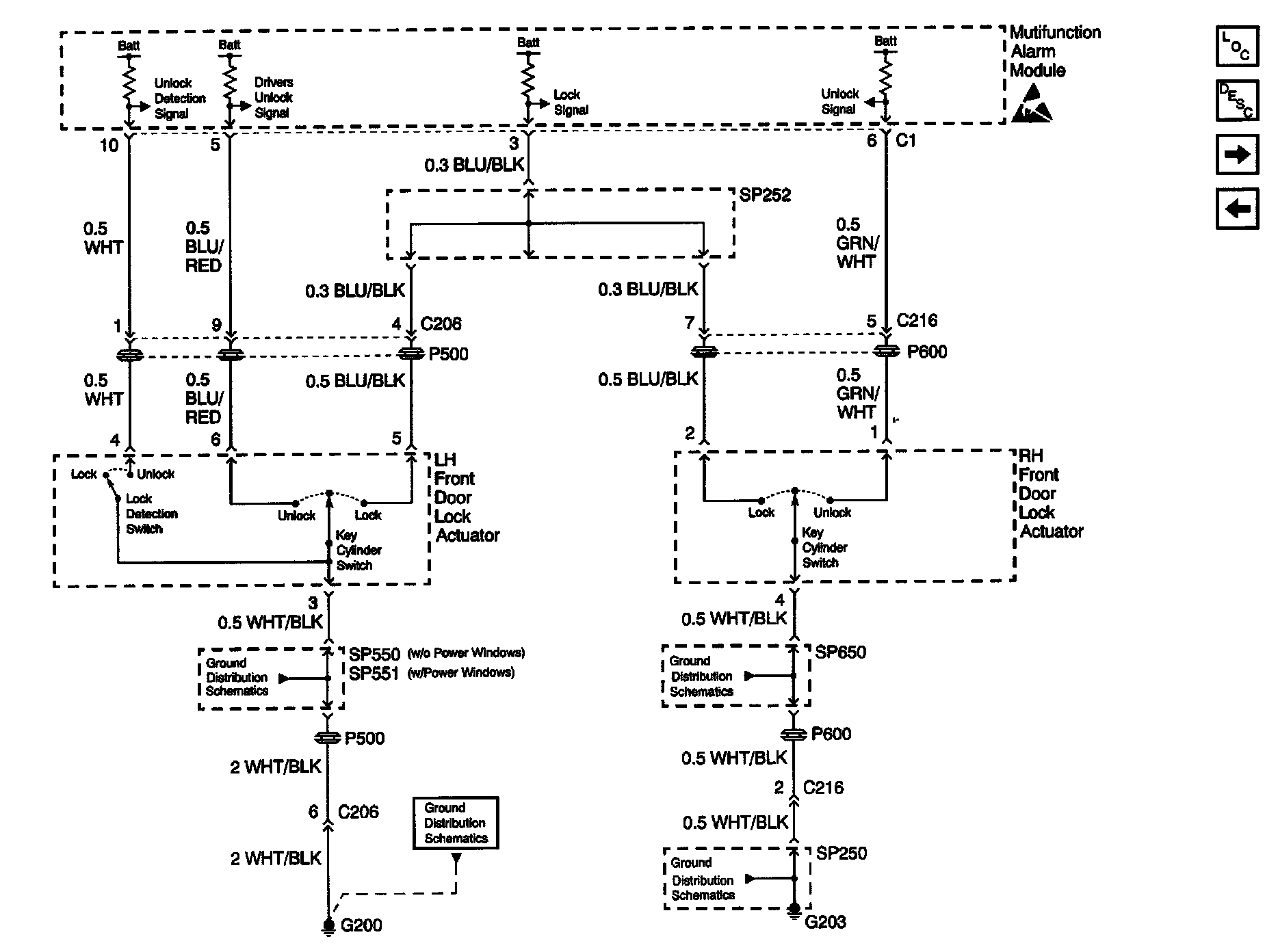

Door Lock/Indicator Schematics: Door Lock Actuators and Multifunction Alarm Module:
