Gauge Fuse and Multifunction Alarm Module
Gauge Fuse and Multifunction Alarm Module

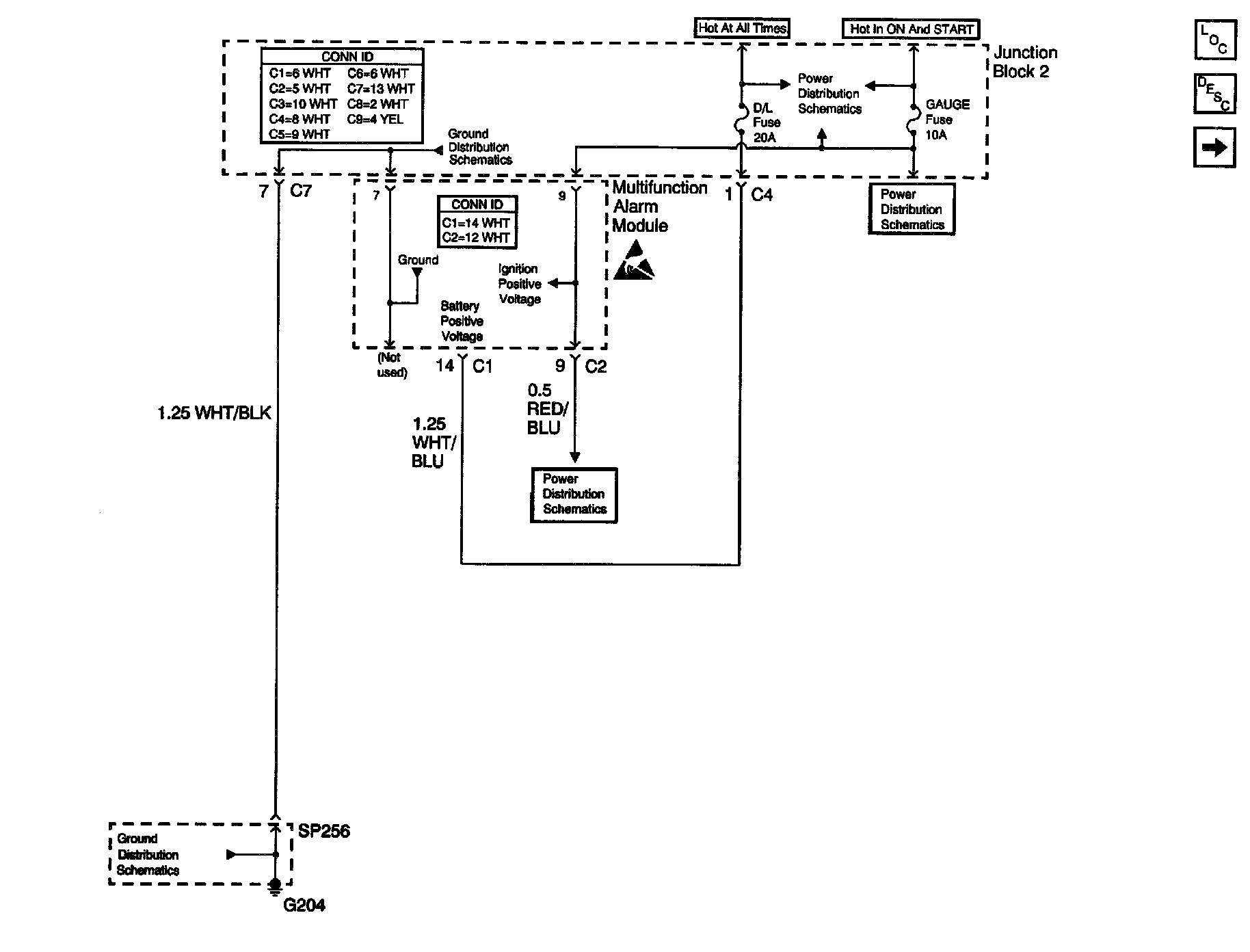

Door Lock/Indicator Schematics: Gauge Fuse and Multifunction Alarm Module:
