Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
Engine

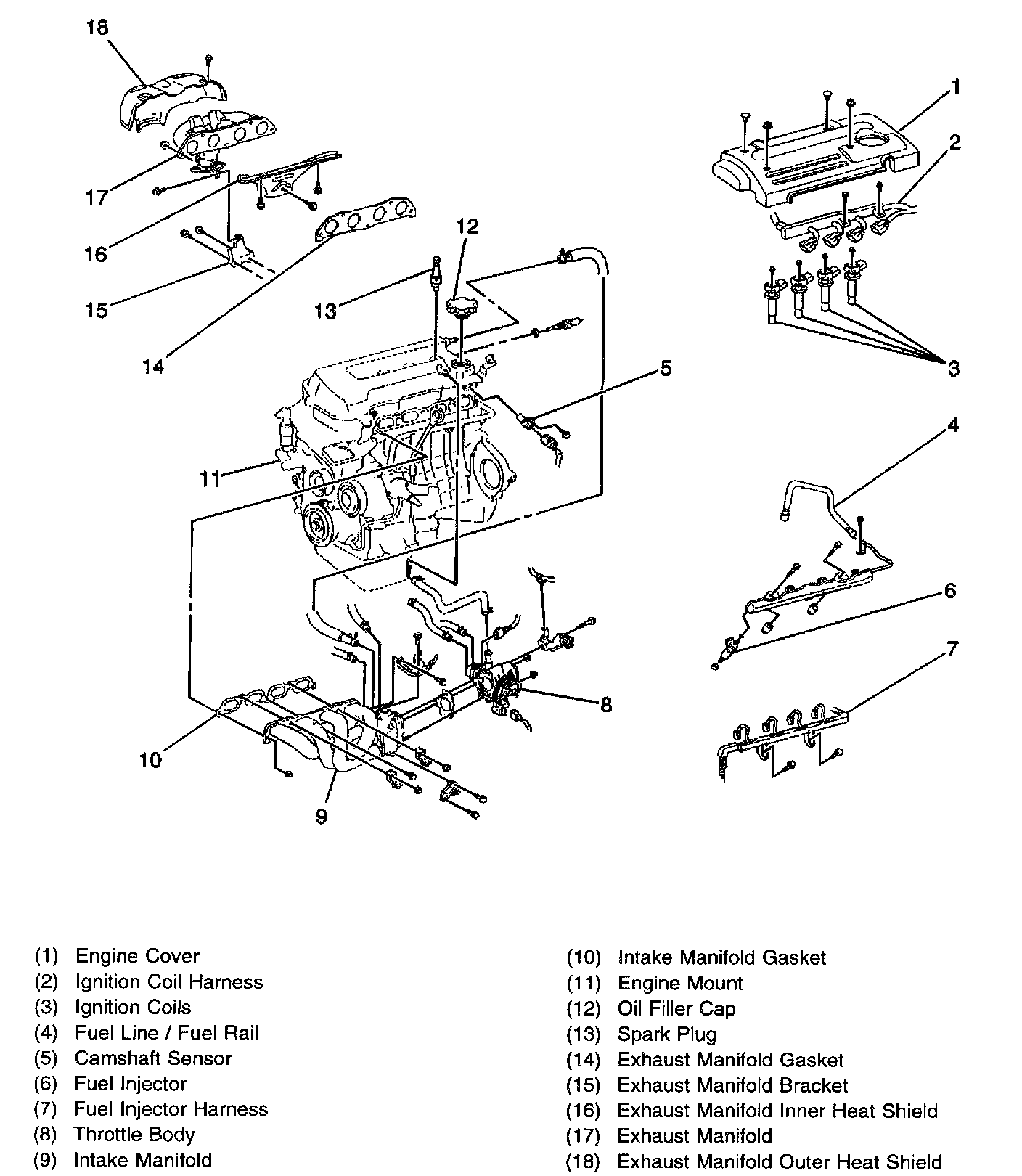

Intake and
Exhaust Manifold
Components

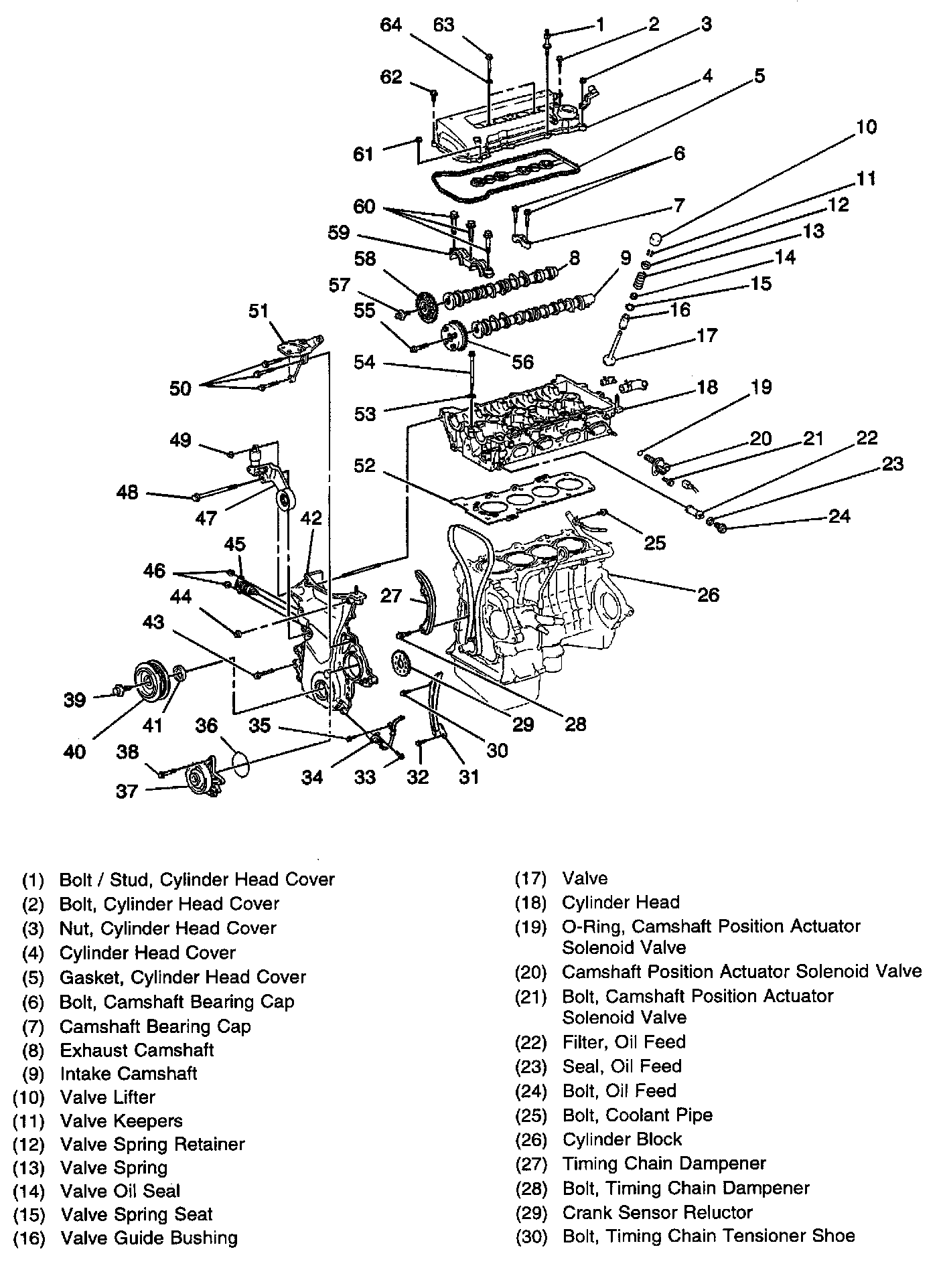

Cylinder Head and Components

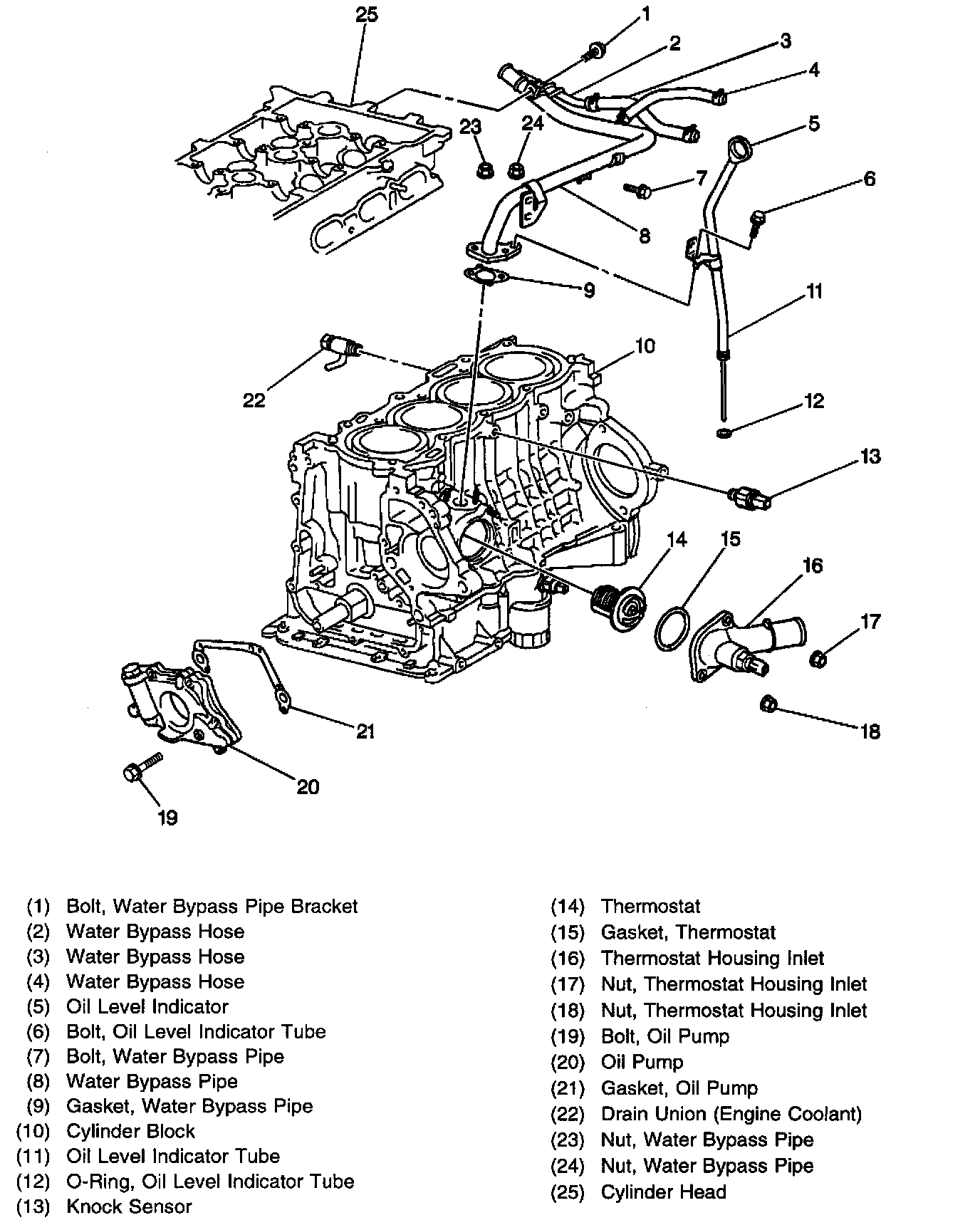

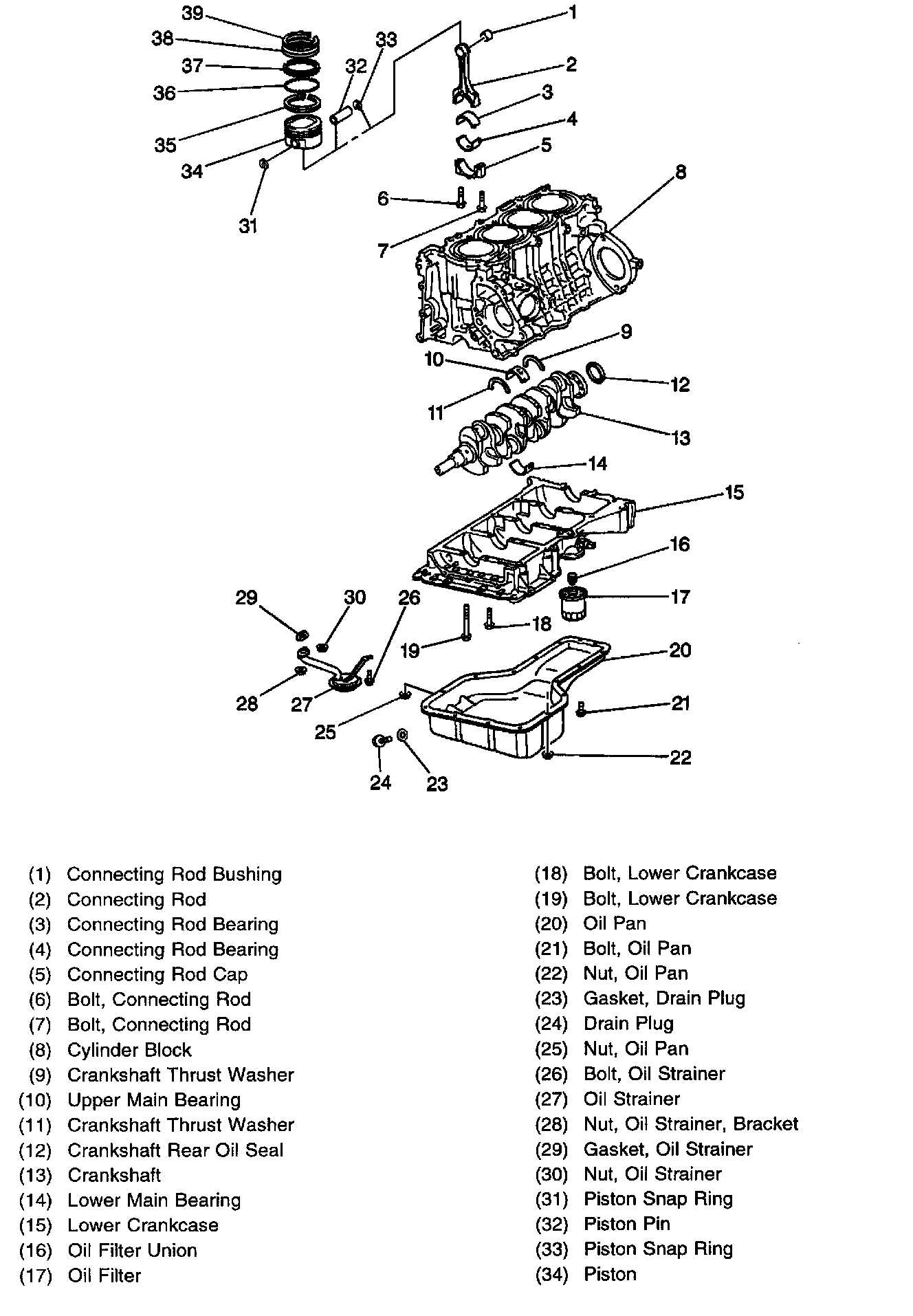

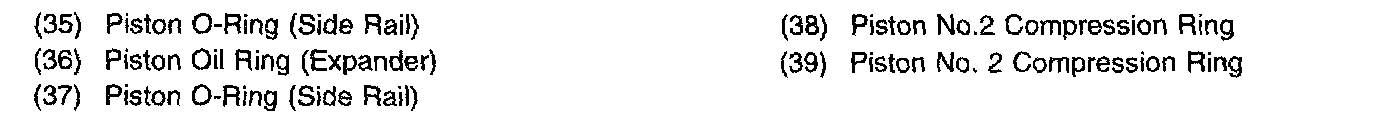

Cylinder Block,
Crankshaft
,
Connecting Rod
and
Piston
Components

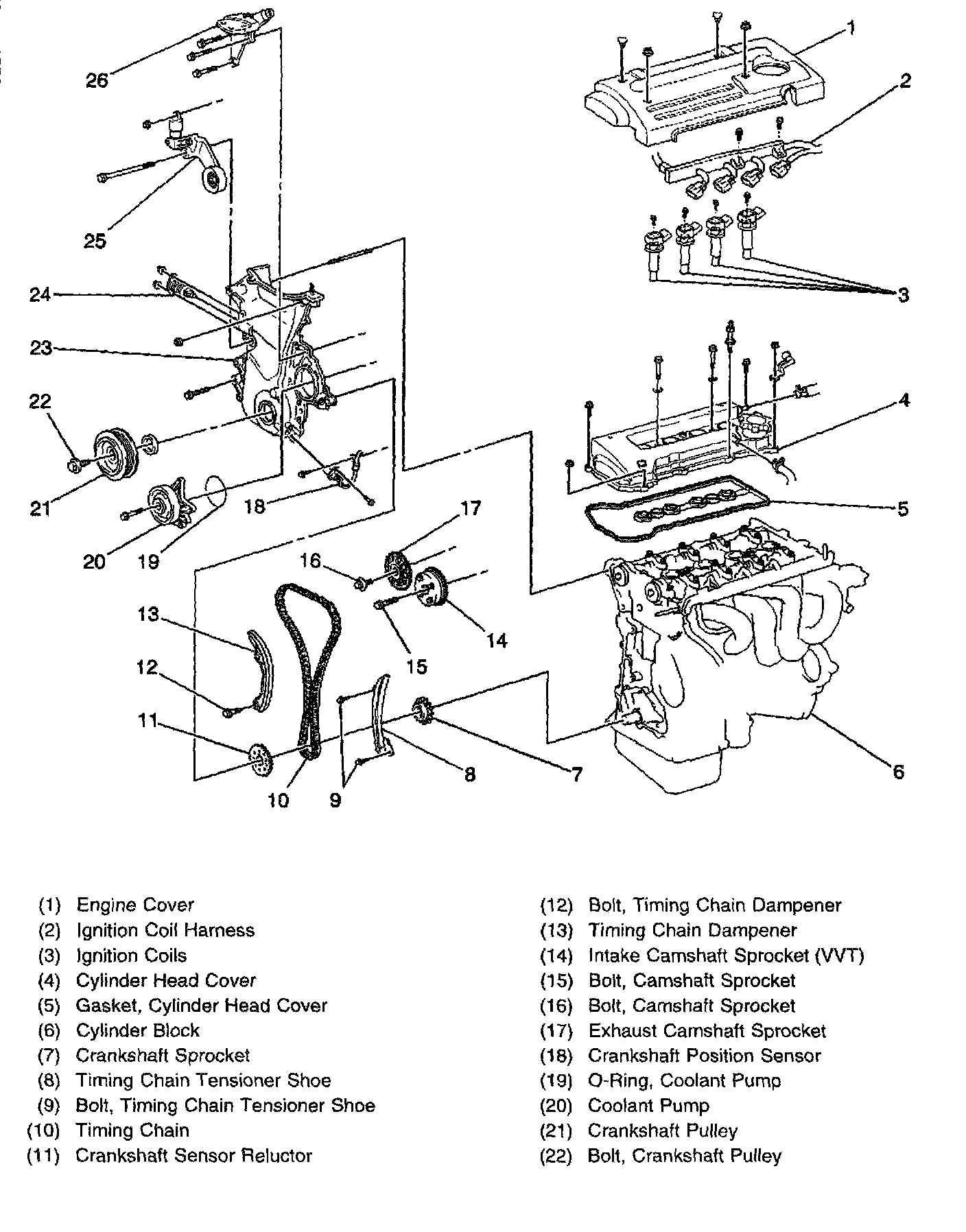

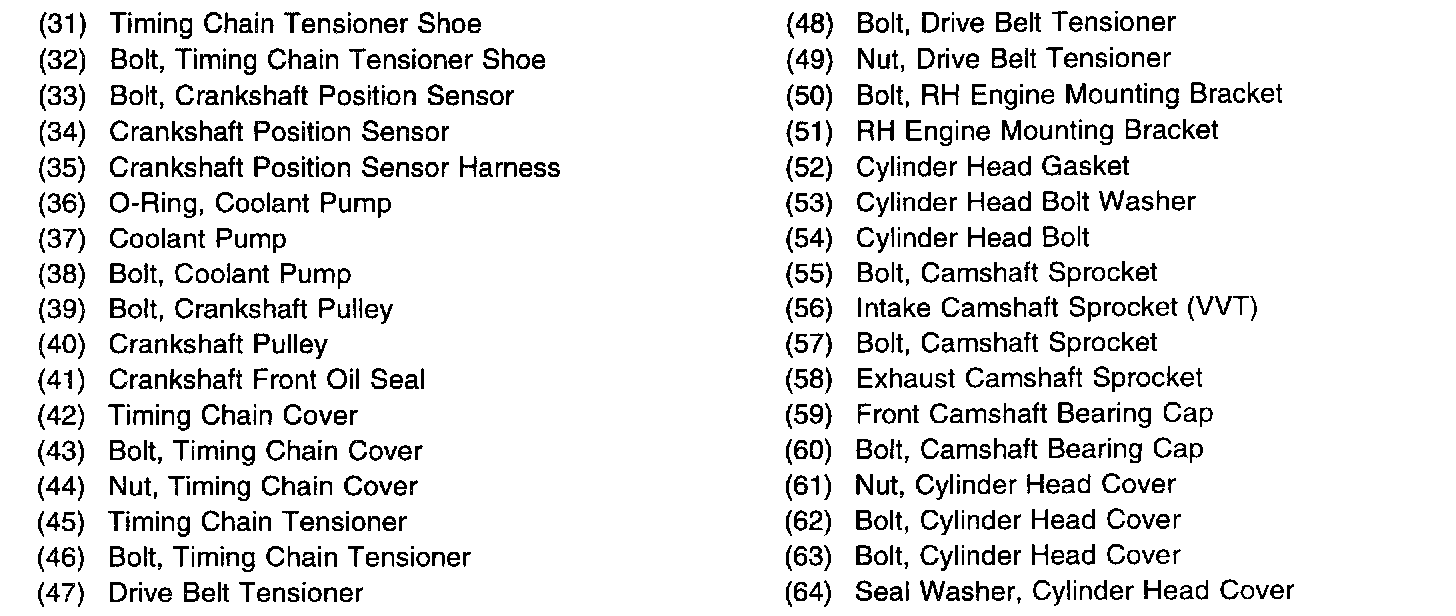

Timing Chain
and Housing Components
Oil and
Cooling System
Components
