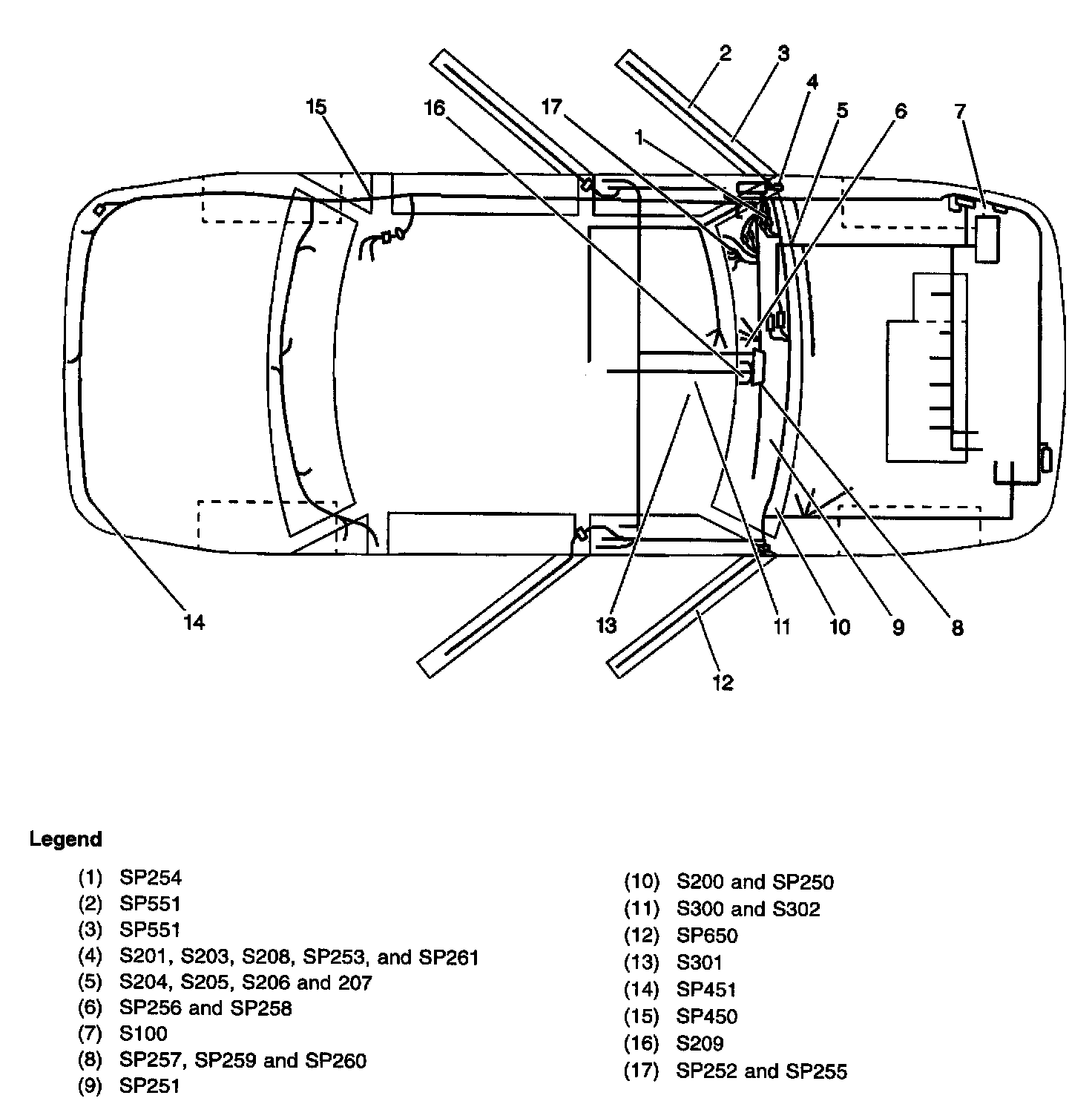

Harness Routing Views (Splice and Splice Pack Views)
Harness Routing Views (Splice and Splice Pack Views)
Harness Routing Views (Splice and Splice Pack Views):
