Instrument Panel (IP) - Air Deflector/Louver - Right

REMOVAL PROCEDURE

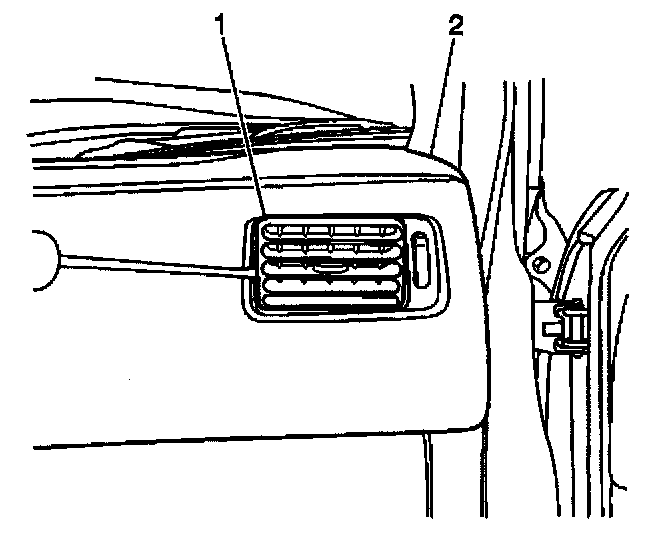

1. Using a taped flat bladed tool, gently pry and release the tab on each side of the right vent louver (1).
2. Remove the right vent louver (1) from the I/P assembly (2).

INSTALLATION PROCEDURE

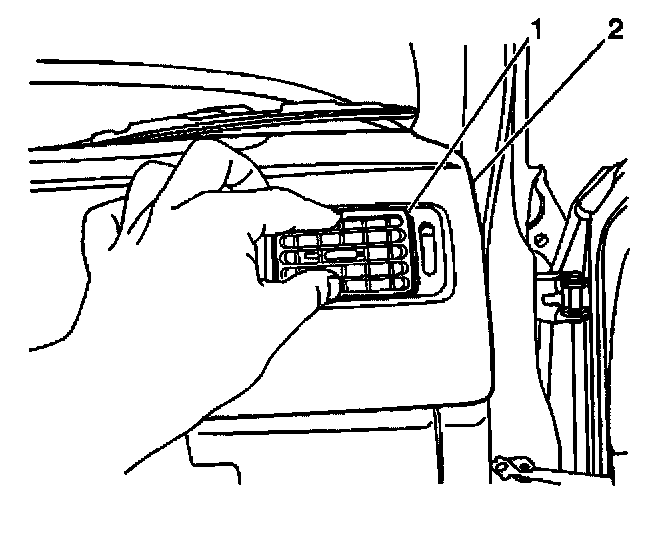

Install the right vent louver (1) to the I/P assembly (2) by inserting straight in, until the tabs engage.
