Instrument Panel (IP) - Harness Replacement

REMOVAL PROCEDURE
1. Remove the instrument panel assembly.

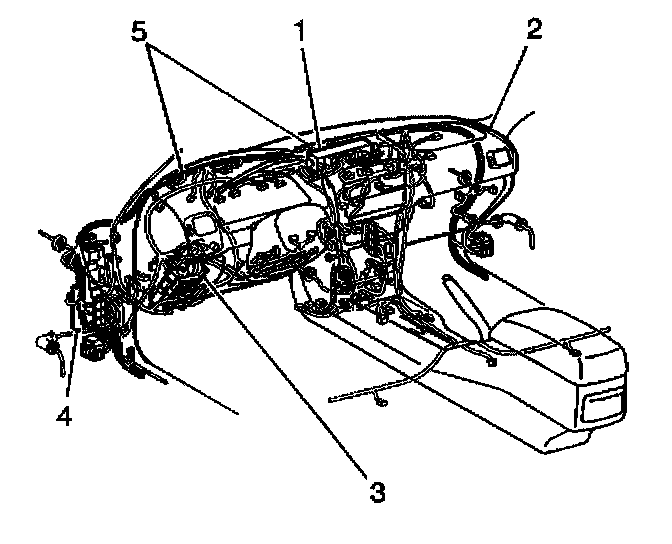

2. Remove the following components from the instrument panel (2):
^ The 1 screw
^ The right I/P outer air outlet
^ The plastic retainer
^ The left I/P outer air outlet
^ The 2 screws
^ The 6 wire harness retainers
^ The instrument panel wiring harness (5)

INSTALLATION PROCEDURE
1. Install the instrument panel wiring harness (5) to the instrument panel assembly (2). Secure the harness with the following:
^ The 6 wire harness retainers
^ The 2 screws
2. Install the left I/P outer air outlet to the instrument panel assembly. Secure the duct with the plastic retainer.
3. Install the right I/P outer air outlet to the instrument panel assembly. Secure the duct with the screw.
4. Install the instrument panel assembly.
