Home
>>
Chevrolet
>>
2000
>>
Prizm L4-108 1.8L DOHC VIN 8 MFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Diagrams
>>
C4
C4

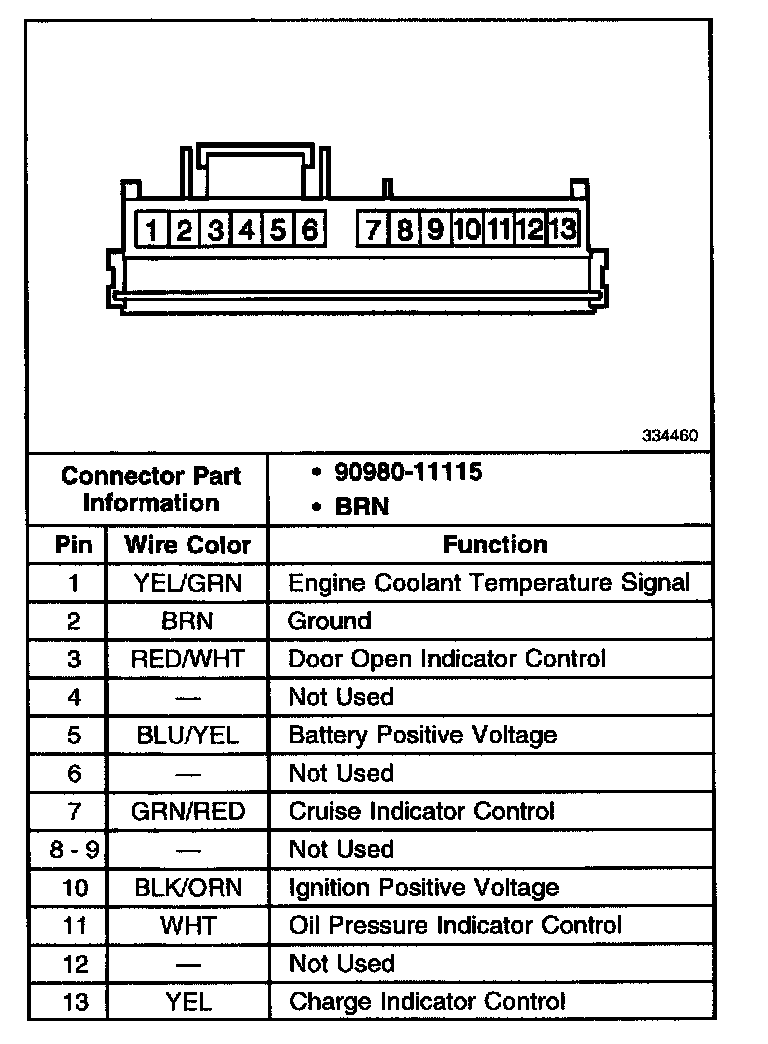

Instrument Cluster Assembly C4:
