Turn Signals: Service and Repair

The turn/hazard signal relay is located in Junction Block #1 under the left body hinge pillar trim panel. Of the relays in this block, the turn/hazard is the tallest.




Removal Procedure
1. Remove the left body hinge pillar trim panel.

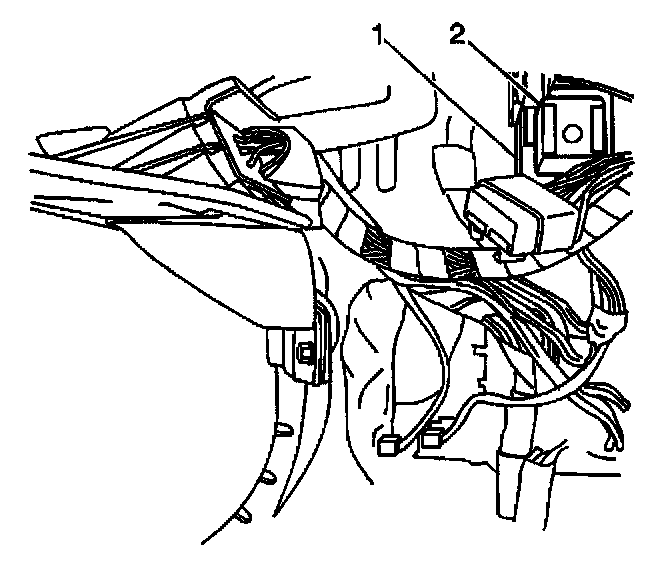

2. Remove the turn/hazard signal relay (2) from Junction Block #1 (1).

Installation Procedure
1. Install the turn/hazard signal relay (2) to Junction Block#1 (1).
2. Install the left body hinge pillar trim panel.
