Evaporative Emissions System: Testing and Inspection

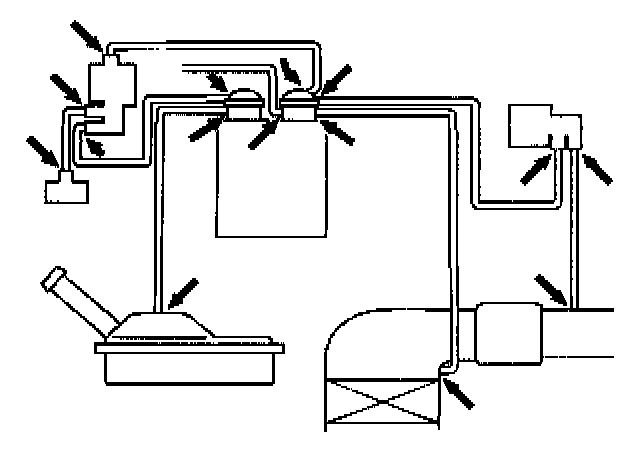

1. Visually inspect the [1][2]EVAP lines, the hoses, and the connection for the following:
^ Any sharp bends or kinks
^ Any deformed lines and hoses
^ Any cracks
^ Any fuel leakage
^ Any incorrect routing of lines and hoses
2. Repair or replace any lines and hoses as necessary.
3. Inspect the fuel filler cap gasket for damage.

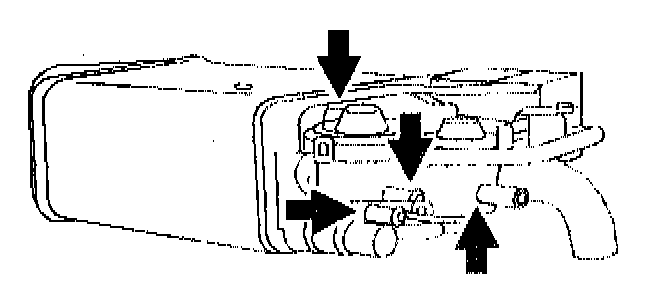

4. Visually inspect the EVAP canister for cracks.
5. Replace the EVAP canister if the canister is damaged.
