Battery, CPP Switch, Fusible Link, IGN SW, ST Relay, & Starter
Battery, CPP Switch, Fusible Link, IGN SW, ST Relay, & Starter

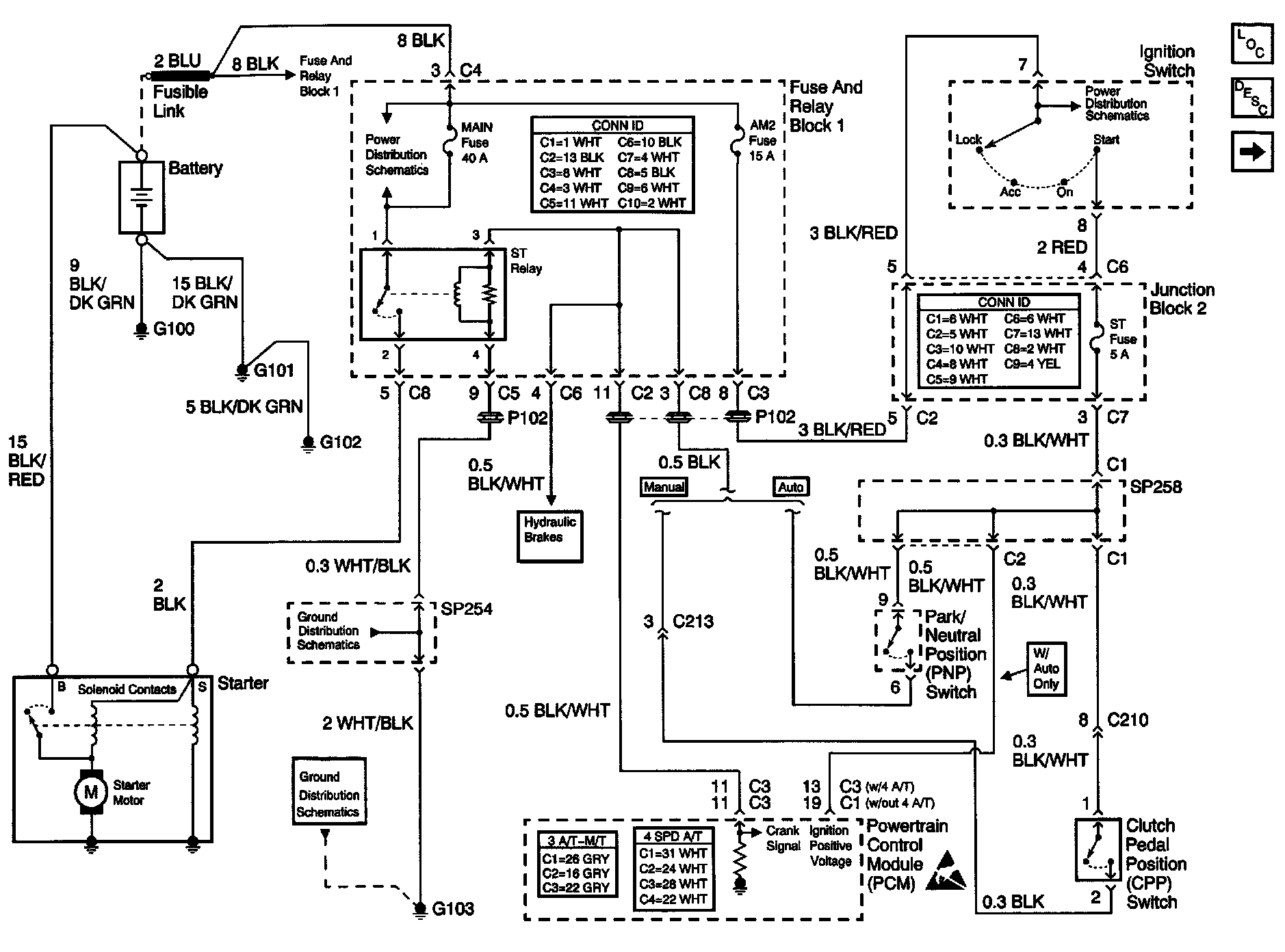

Starting and Charging Schematics(Battery,CPP Switch,Fusible Link,Ignition Switch,ST Relay, and Starter):
