Battery, Fusible Link, and Generator

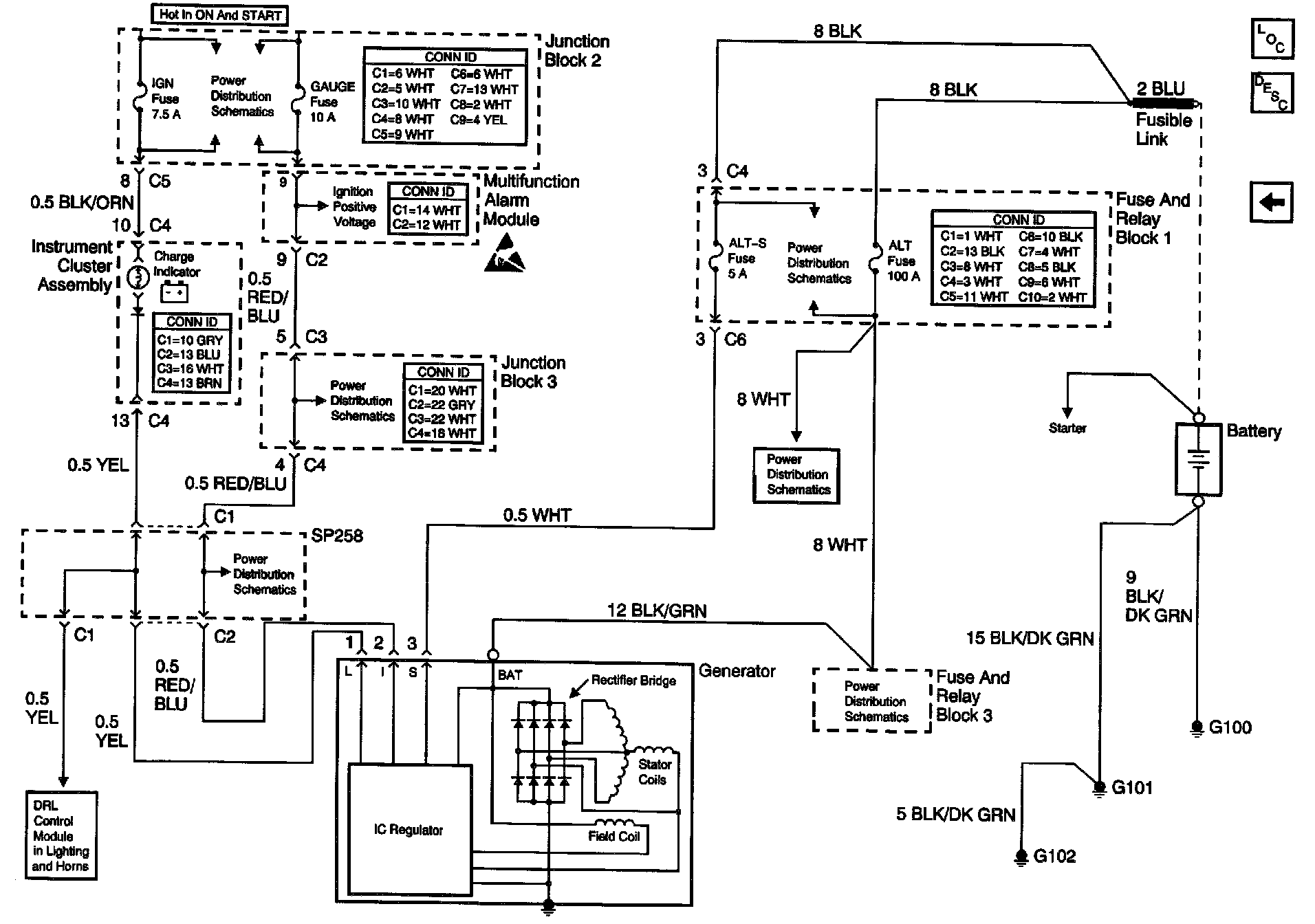

Starting and Charging Schematics(Battery,Fusible Link, and Generator):
