Clutch Jumper Harness Combinations
Clutch Jumper Harness Combinations

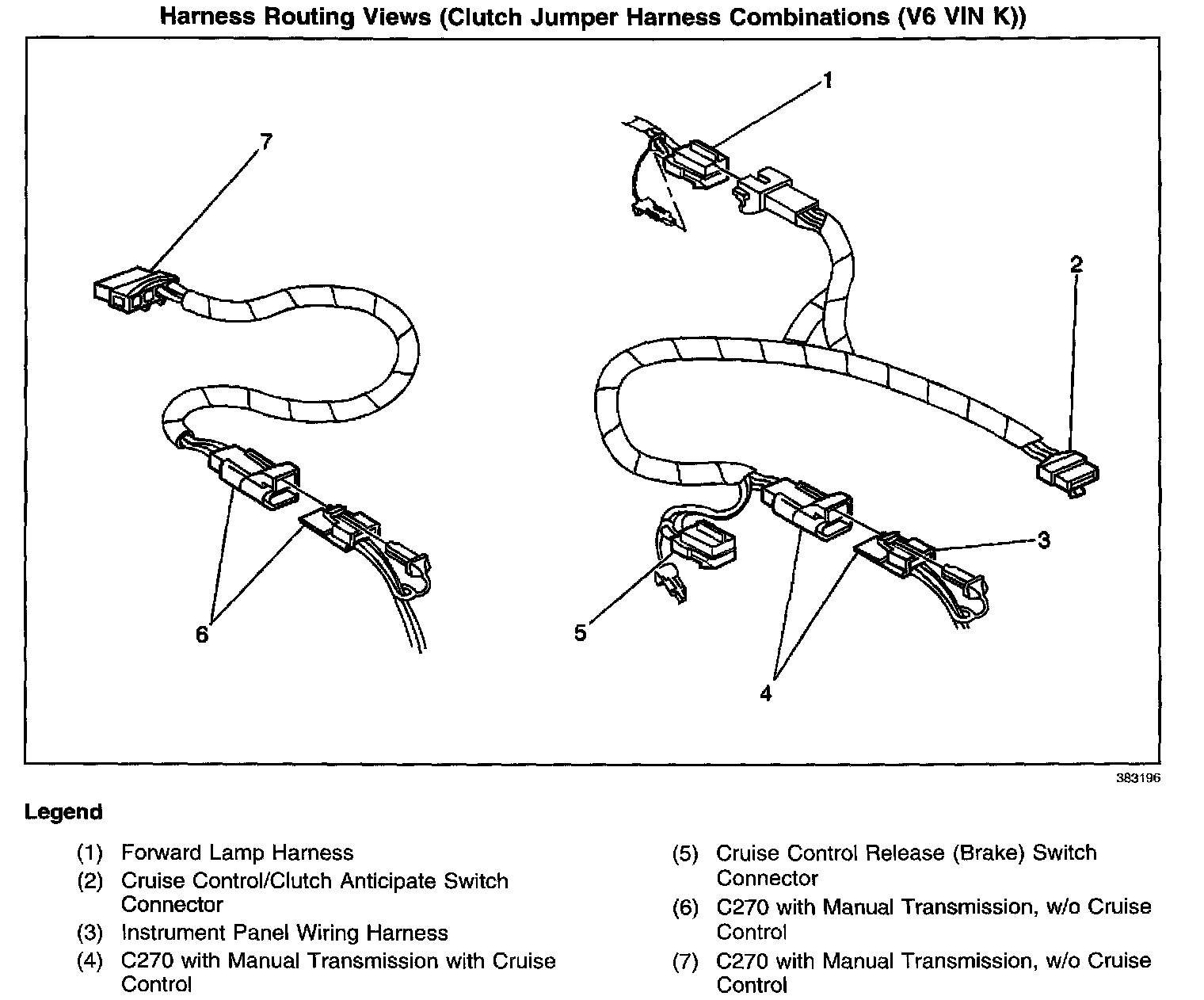

Harness Routing Views (Clutch Jumper Harness Combinations (V6 VIN K)):
