Fog Lamp Replacement - Front
REMOVAL PROCEDURECAUTION: Refer to Halogen Bulb Caution in Service Precautions
1. Remove the headlamp.

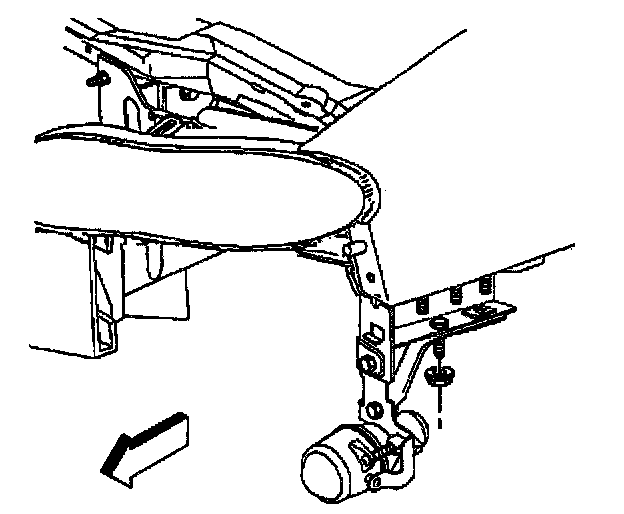

2. Loosen the front fascia reinforcement nut, if necessary.
3. Disconnect the electrical connector from the fog lamp.

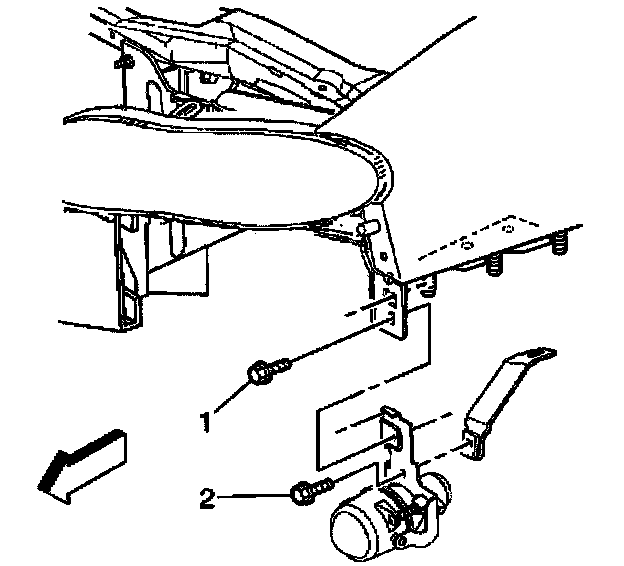

4. Remove the fog lamp to headlamp bracket bolt (1).
5. Remove the fog lamp bracket bolt (2).
6. Remove the fog lamp from the vehicle.
INSTALLATION PROCEDURE
1. Position the fog lamp to the vehicle.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the fog lamp bracket bolt (2) to the fog lamp.
Tighten
Tighten the bolt (2) to 10 N.m (89 lb in).
3. Install the fog lamp to headlamp bolt (1).
Tighten
Tighten the fog lamp to headlamp bolt (1) to 10 N.m (89 lb in).
4. Connect the electrical connector to the fog lamp.
5. Tighten the front fascia reinforcement nut, if necessary.
Tighten
Tighten the front fascia reinforcement nut to 10 N.m (89 lb in).
6. Install the headlamp.
