Park/Turn Signal Lamp Replacement

REMOVAL PROCEDURE




1. Remove the headlamp.

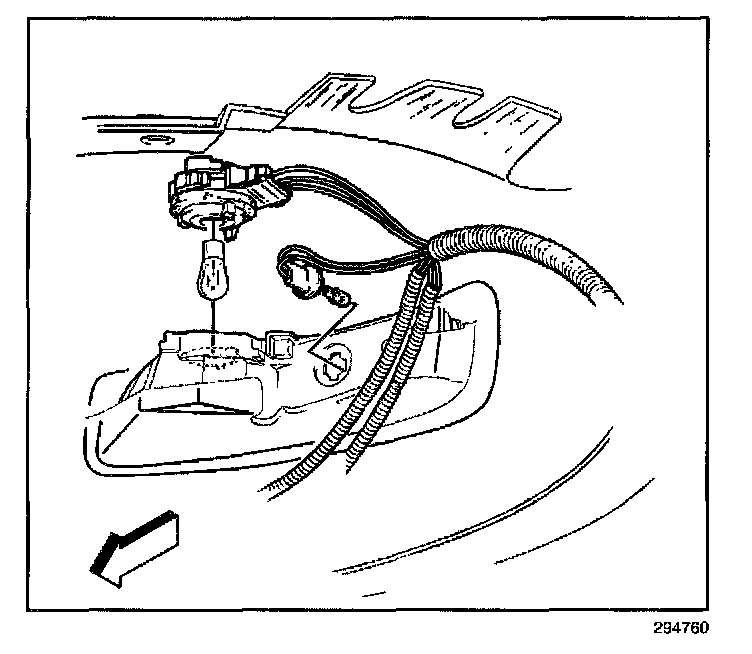

2. Remove the park and turn signal sockets from the lamp by rotating counterclockwise.




3. Remove the park/turn signal lamp bolts from the lamp.
4. Remove the park and turn signal lamp from the front bumper fascia.

INSTALLATION PROCEDURE




1. Install the park and turn signal lamp to the front bumper fascia.

NOTE: Refer to Fastener Notice in Service Precautions

2. Install the park and turn signal lamp bolts.

Tighten
Tighten the park and turn signal lamp bolts to 3 N.m (27 lb in).




3. Install the park and turn signal sockets to the lamp by rotating clockwise.
4. Install the headlamp.
