I/P Fuse Block BCM, Wiper, HVAC, O2 HTR Fuses and PWR WDO Circuit Breaker

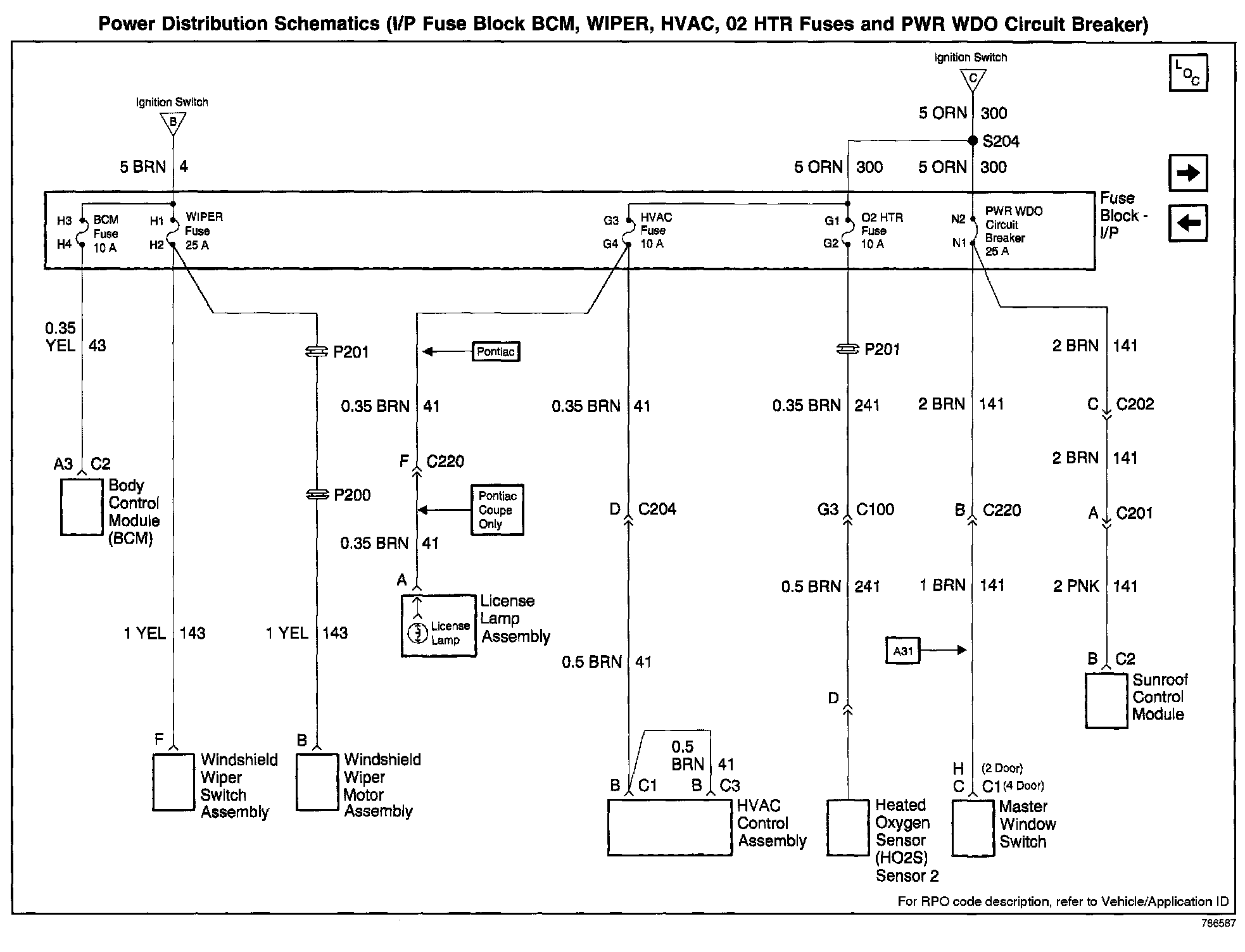

Power Distribution Schematics: I/P Fuse Block BCM, WIPER, HVAC, O2 HTR Fuses And PWR WDO Circuit Breaker:
