Map Light
>>
Reading/ Courtesy Lamp Switch
Reading/ Courtesy Lamp Switch

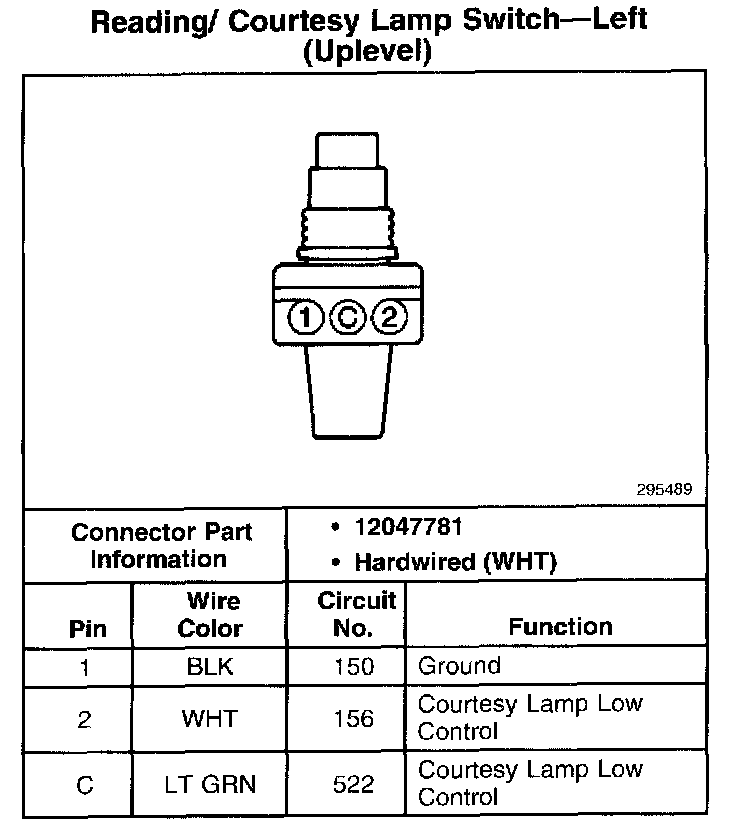

Reading/Courtesy Lamp Switch - Left (Uplevel):

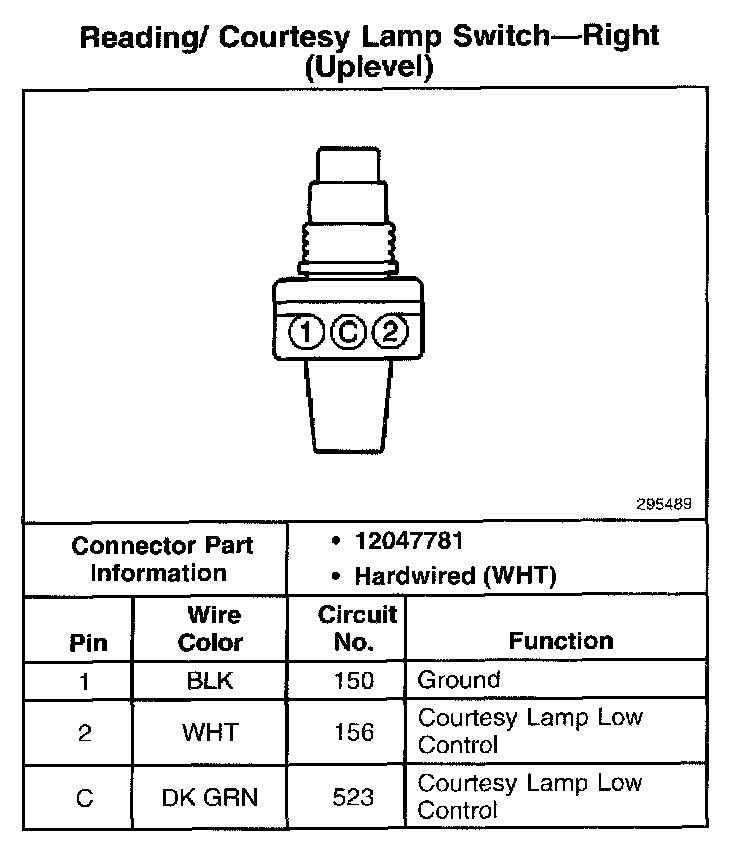

Reading/Courtesy Lamp Switch - Right (Uplevel):
