Instrument Panel (IP) - Defroster Grille Replacement

Defroster Grille Replacement (Chevrolet)

Removal Procedure




1. Remove the screw from the front of the defroster grille.

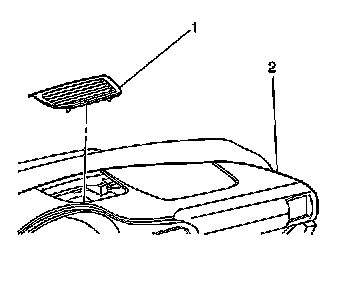

2. Remove the defroster grille (1) using a small flat-bladed tool from the instrument panel (IP) (2).

Installation Procedure




1. Install the defroster grille (1) to the IP (2) pressing into place until fully seated.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the screw to the front of the defroster grille.

Tighten the screw to 2 N.m (18 lb in).
