Fog Lamp Replacement - Front

REMOVAL PROCEDURE

CAUTION: Refer to Halogen Bulb Caution in Service Precautions.




1. Partially remove the front edge of the front fender liner to gain access to the fog lamps.
2. Remove the fog lamp bulb/socket from the fog lamp.

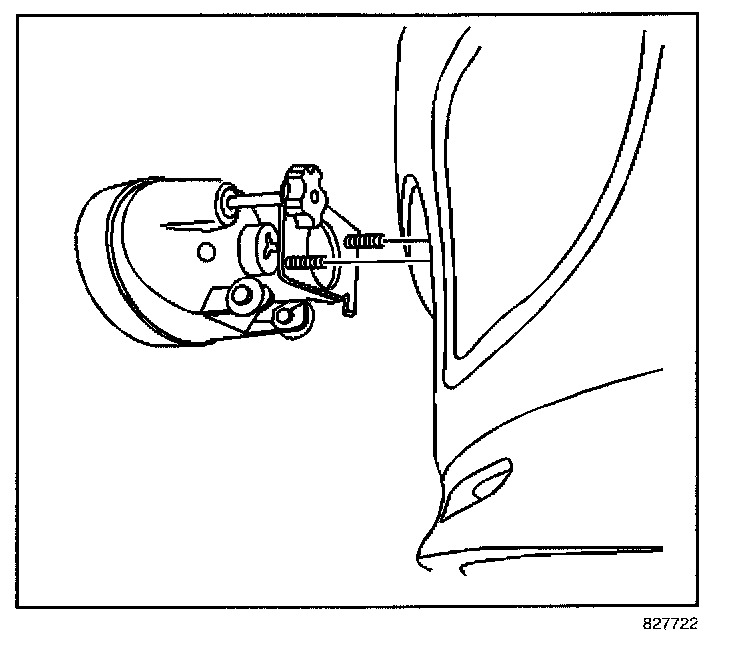

3. Remove the nuts (2) from the fog lamp.




4. Remove the fog lamp from the front bumper fascia.

INSTALLATION PROCEDURE




1. Position the fog lamp to the front bumper fascia.

NOTE: Refer to Fastener Notice in Service Precautions.




2. Install the fog lamp nuts (2) to the fog lamp.

Tighten
Tighten the nuts to 6 N.m (53 lb in).

3. Install the fog lamp bulb/socket to the fog lamp.
4. Install the front fender liner.
