A - Z Master Electrical Component List

1-2 Shift Solenoid (1-2SS) Valve - Air Temperature Sensor-Inside (CJ2):

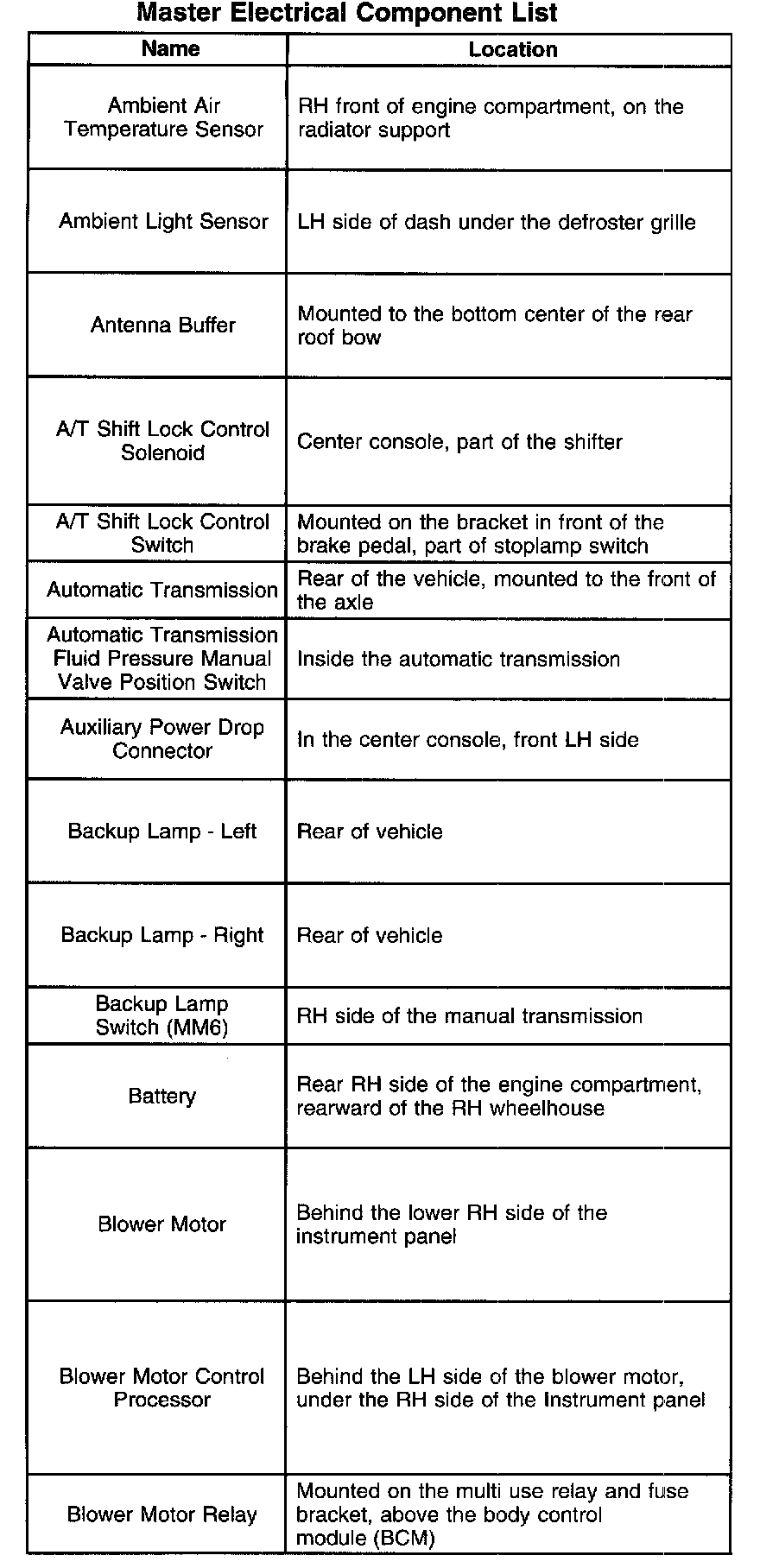

Ambient Air Temperature Sensor - Blower Motor Relay:

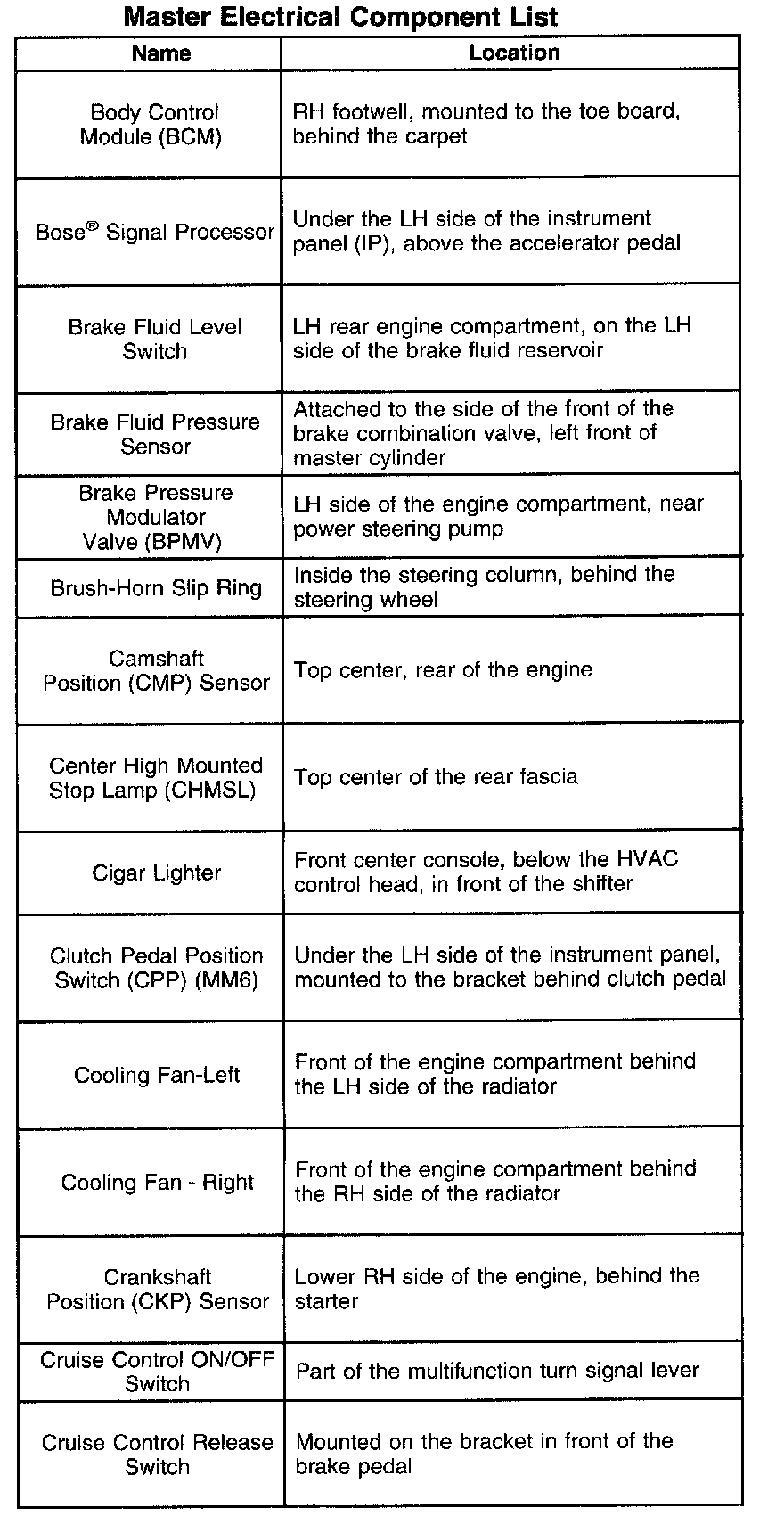

Body Control Module (BCM) - Cruise Control Release Switch:

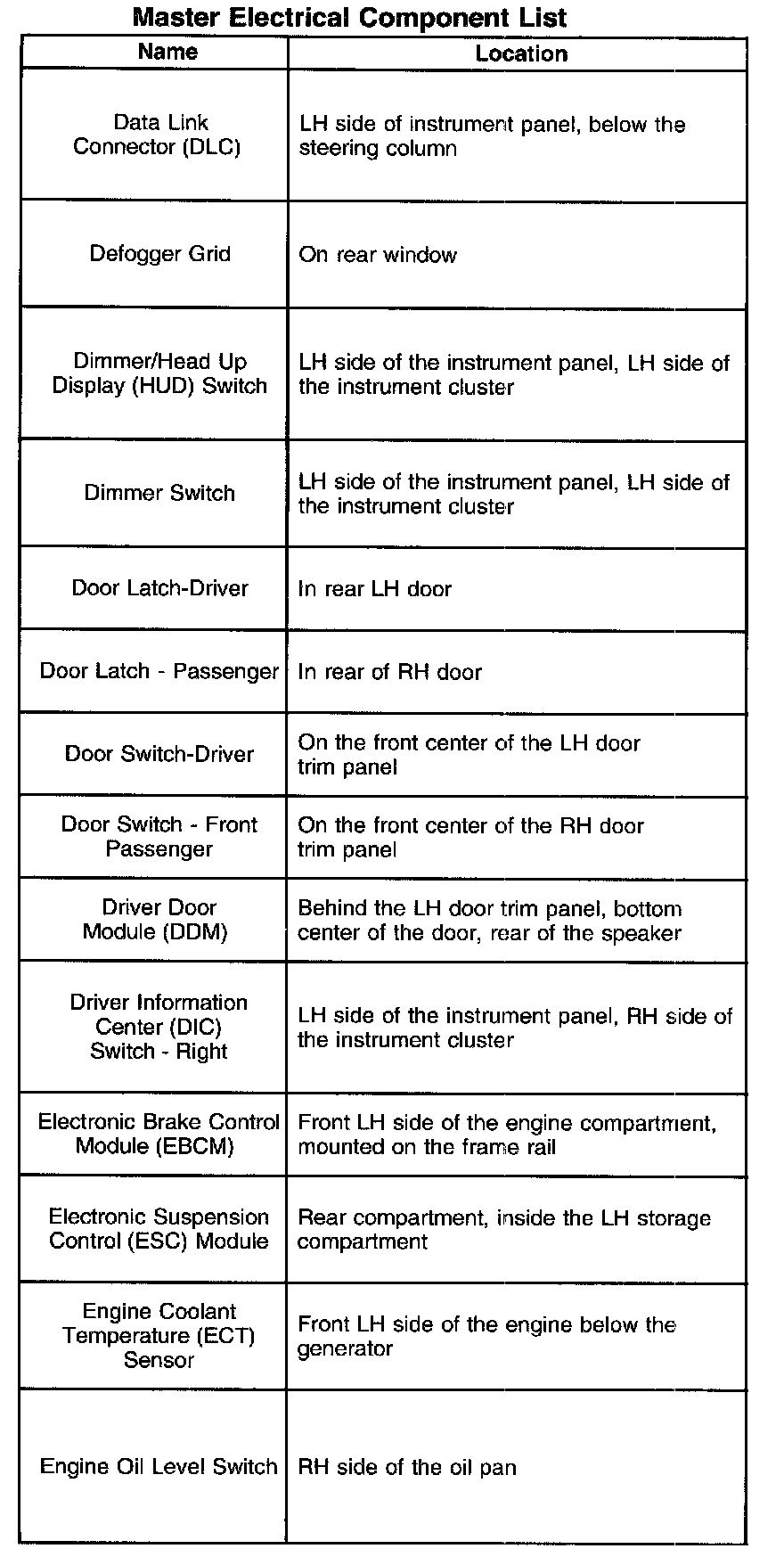

Data Link Connector (DLC) - Engine Oil Level Switch:

Engine Oil Pressure (EOP) Sensor - Folding Top Release Switch:

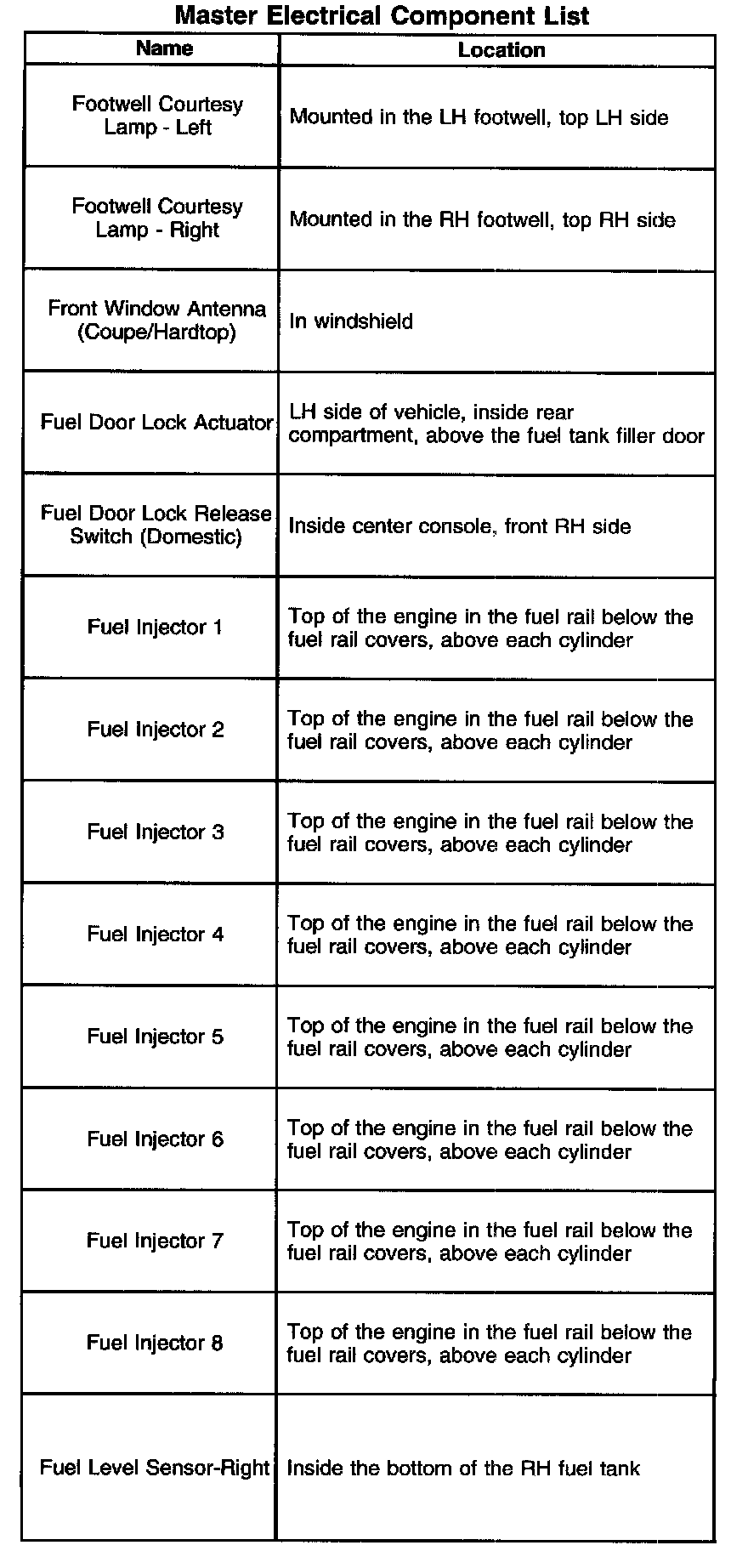

Footwell Courtesy Lamp-Left - Fuel Level Sensor-Right:

Fuel Pump And Sender Assembly - Hood Ajar Switch (Export):

Horn Assembly - Inflatable Restraint IP Module Disable Switch:

Inflatable Restraint Sensing And Diagnostic Module (SDM) - Marker Lamp-LF:

Marker Lamp-LR - Powertrain Control Module (PCM):

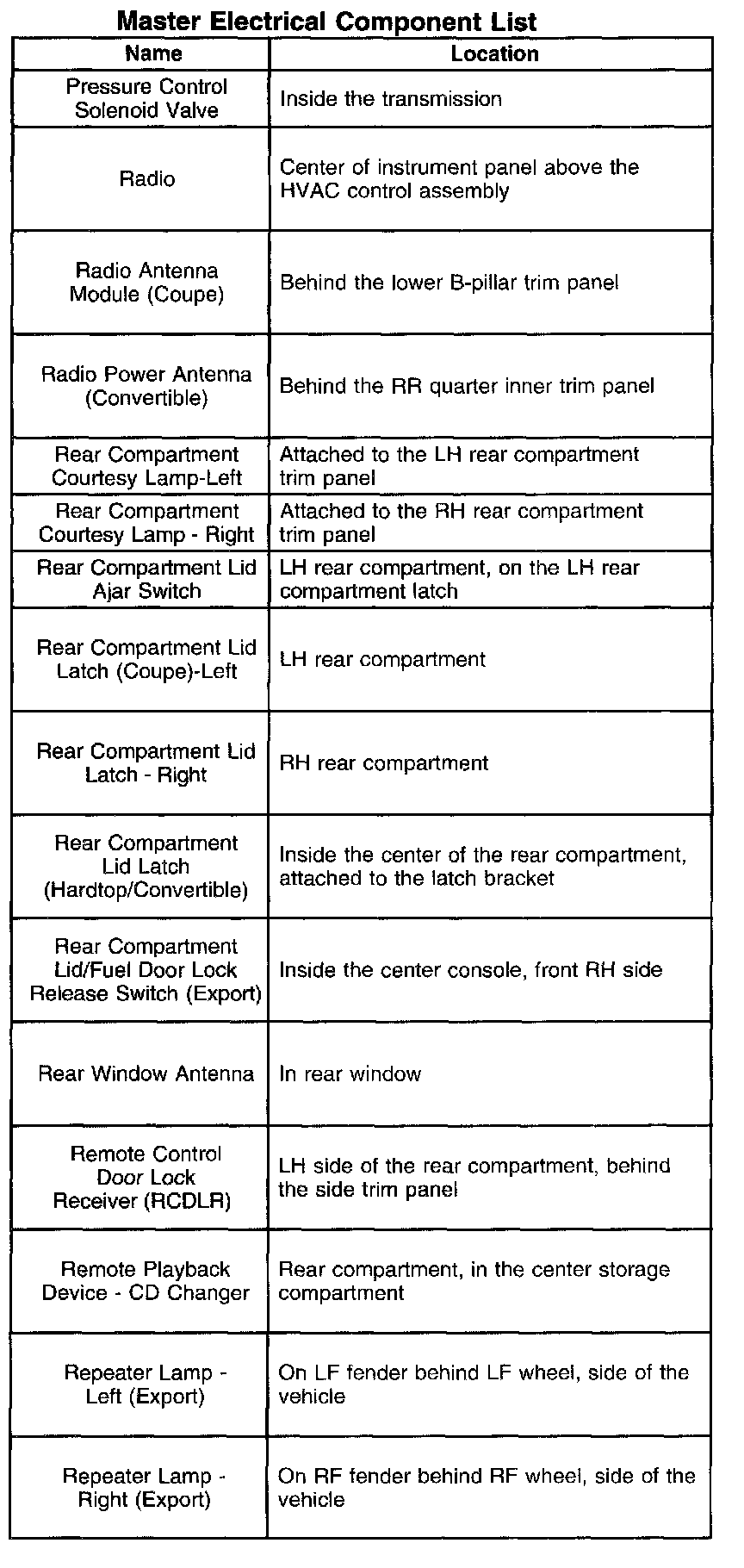

Pressure Control Solenoid Valve - Repeater Lamp-Right (Export):

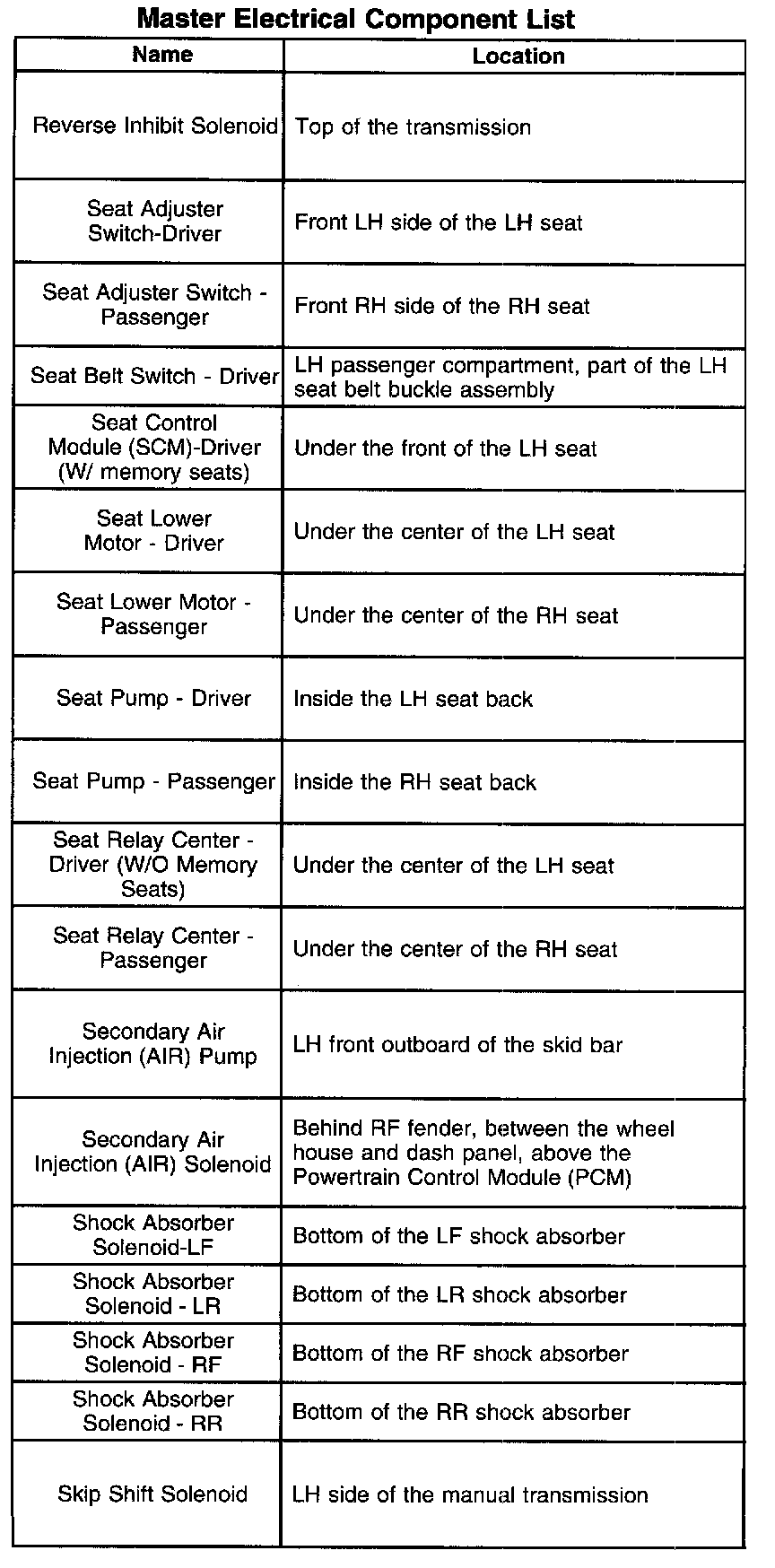

Reverse Inhibit Solenoid - Skip Shift Solenoid:

Speaker-LF Door - Tail/Stop Lamp-Left (Export):

Tail/Stop Lamp-Right (Export) - Torque Converter Clutch (TCC) Solenoid Valve:

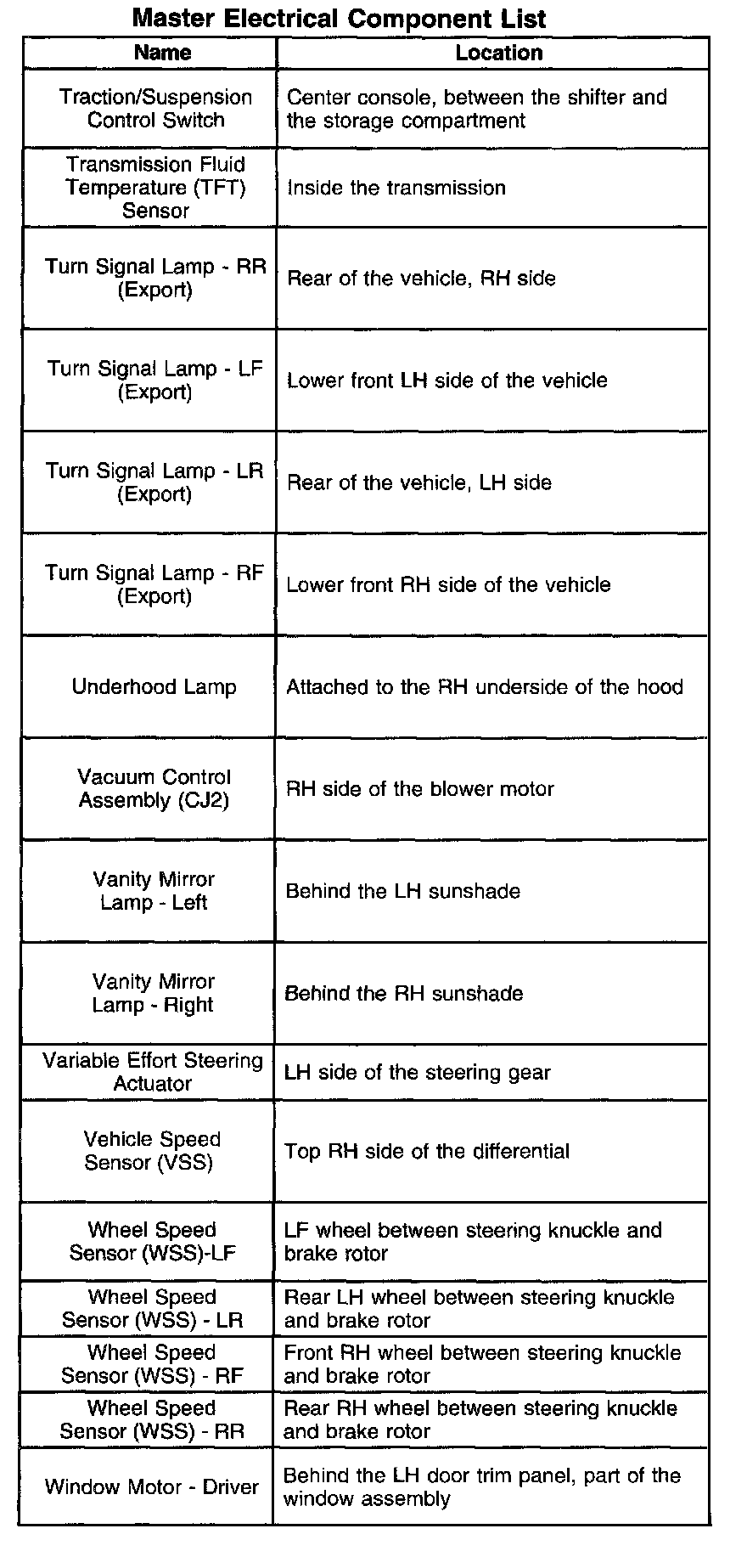

Traction/Suspension Control Switch - Window Motor-Driver:

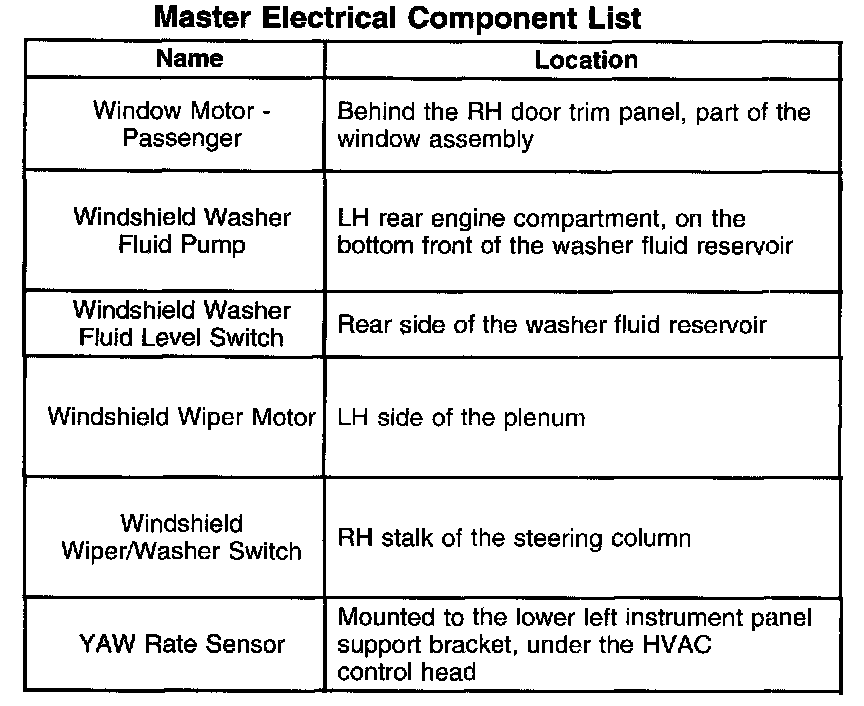

Window Motor-Passenger - YAW Rate Sensor:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
