Fuel Door Lock

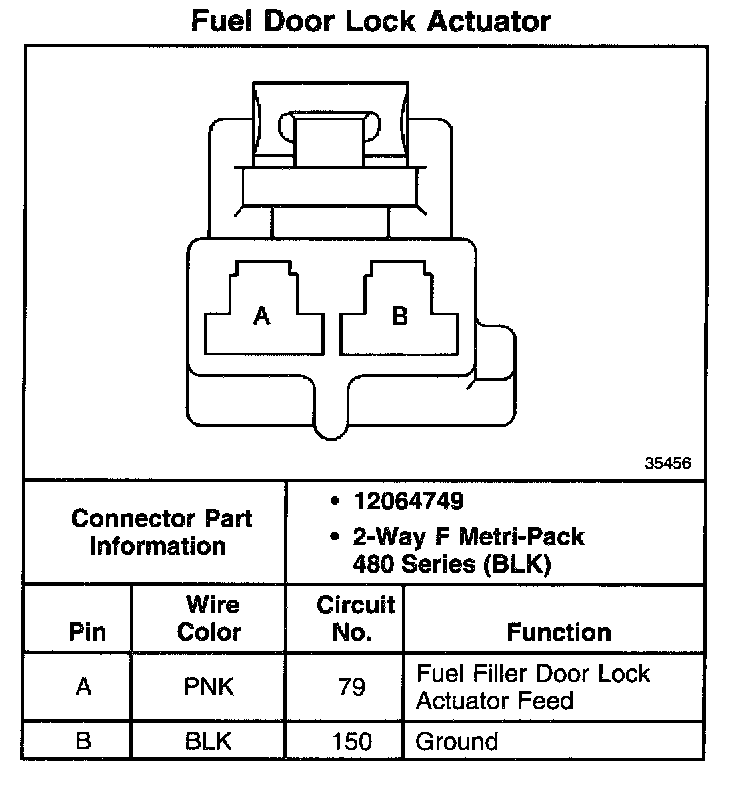

Fuel Door Lock Actuator:



Fuel Door Lock Release Switch (Domestic) Rear Compartment Lid/Fuel Door Lock Release Switch (Export):
