Home >> Chevrolet >> 2002 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Lamp >> Park/Turn Signal Lamp - RF (Domestic)

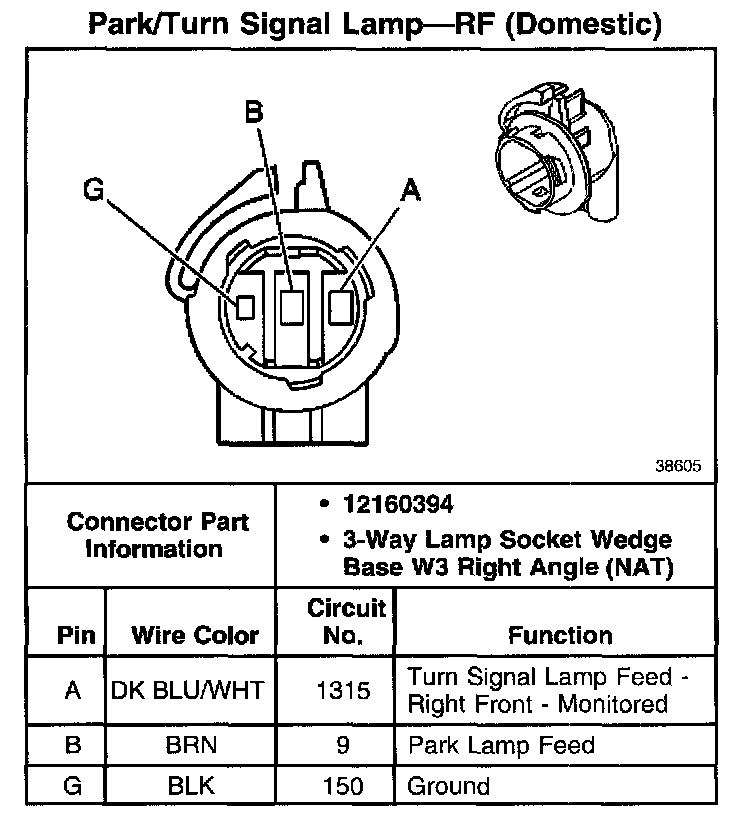

Park/Turn Signal Lamp - RF (Domestic)

Park/Turn Signal Lamp - RF (Domestic):
