Passenger Side Inflatable Restraint (PSIR) IP Module Switch
Passenger Side Inflatable Restraint (PSIR) IP Module Switch

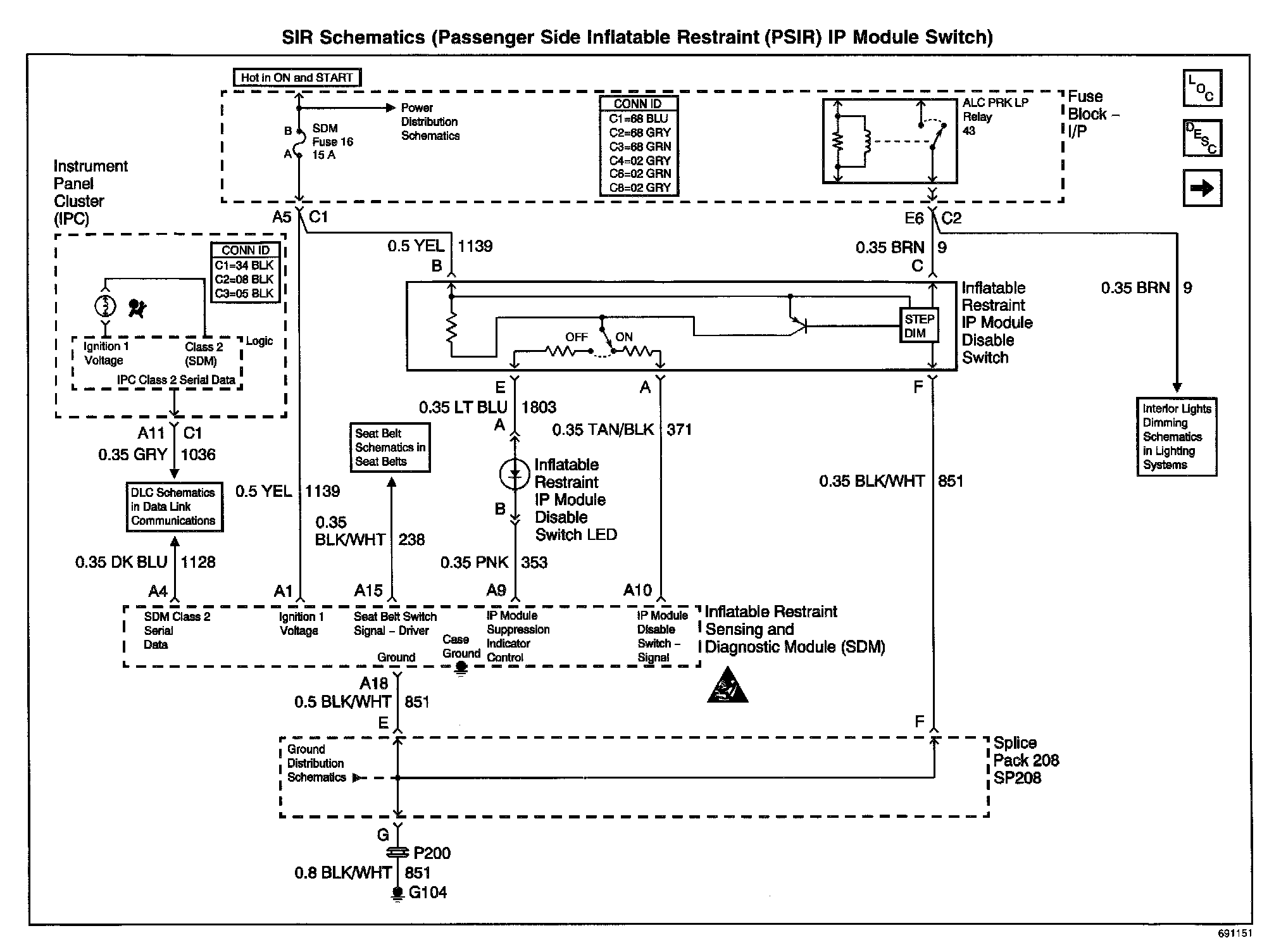

SIR Schematics: Passenger Side Inflatable Restraint (PSIR) IP Module Switch:
