Antitheft and Alarm Systems
>>
Theft Deterrent Relay, Security Indicator, Lighting & Horn References
Theft Deterrent Relay, Security Indicator, Lighting & Horn References

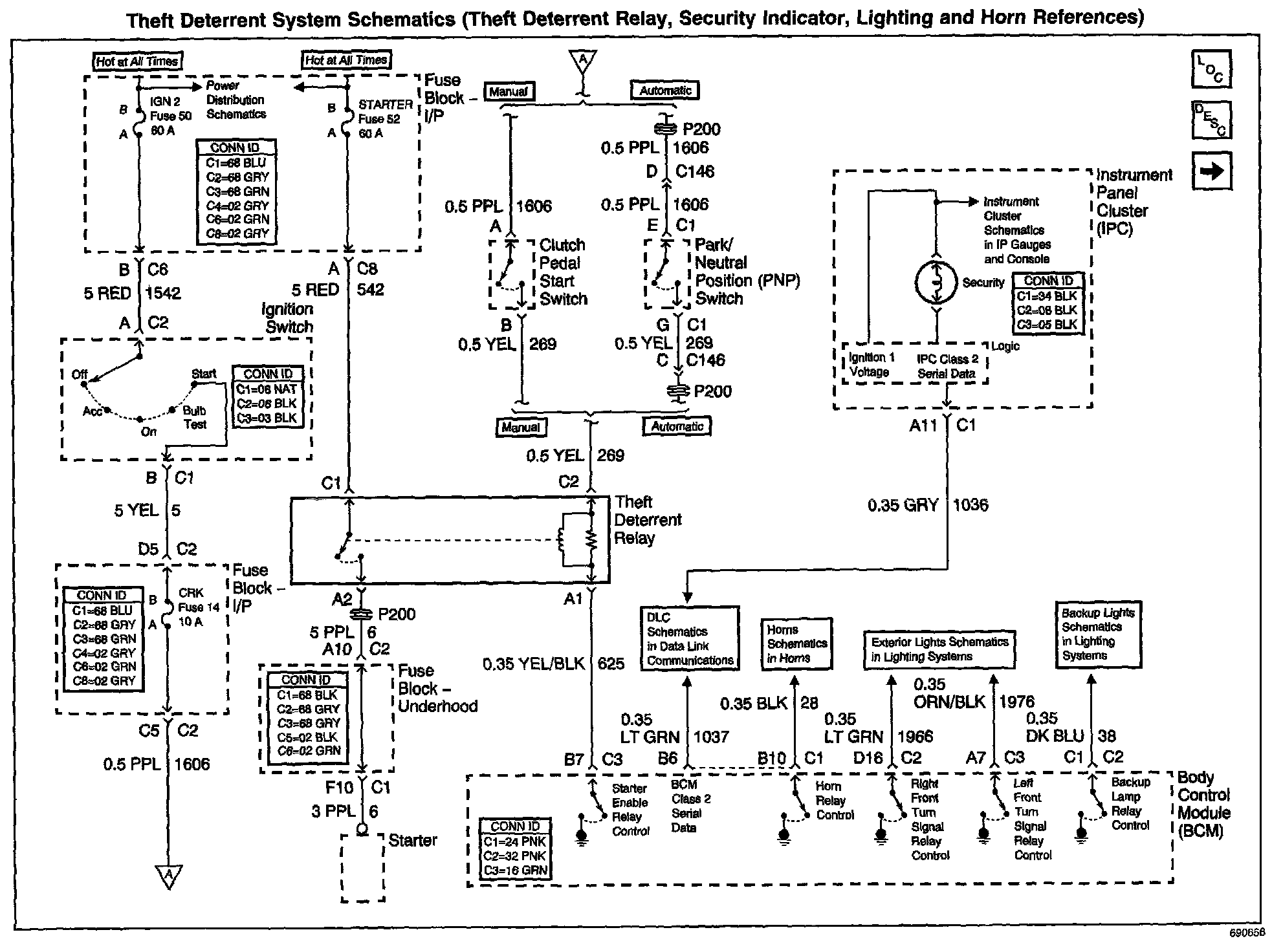

Theft Deterrent System Schematics: Theft Deterrent Relay, Security Indicator, Lighting And Horn References:
