Temperature, Fuel And Oil Pressure Gauges
Temperature, Fuel And Oil Pressure Gauges

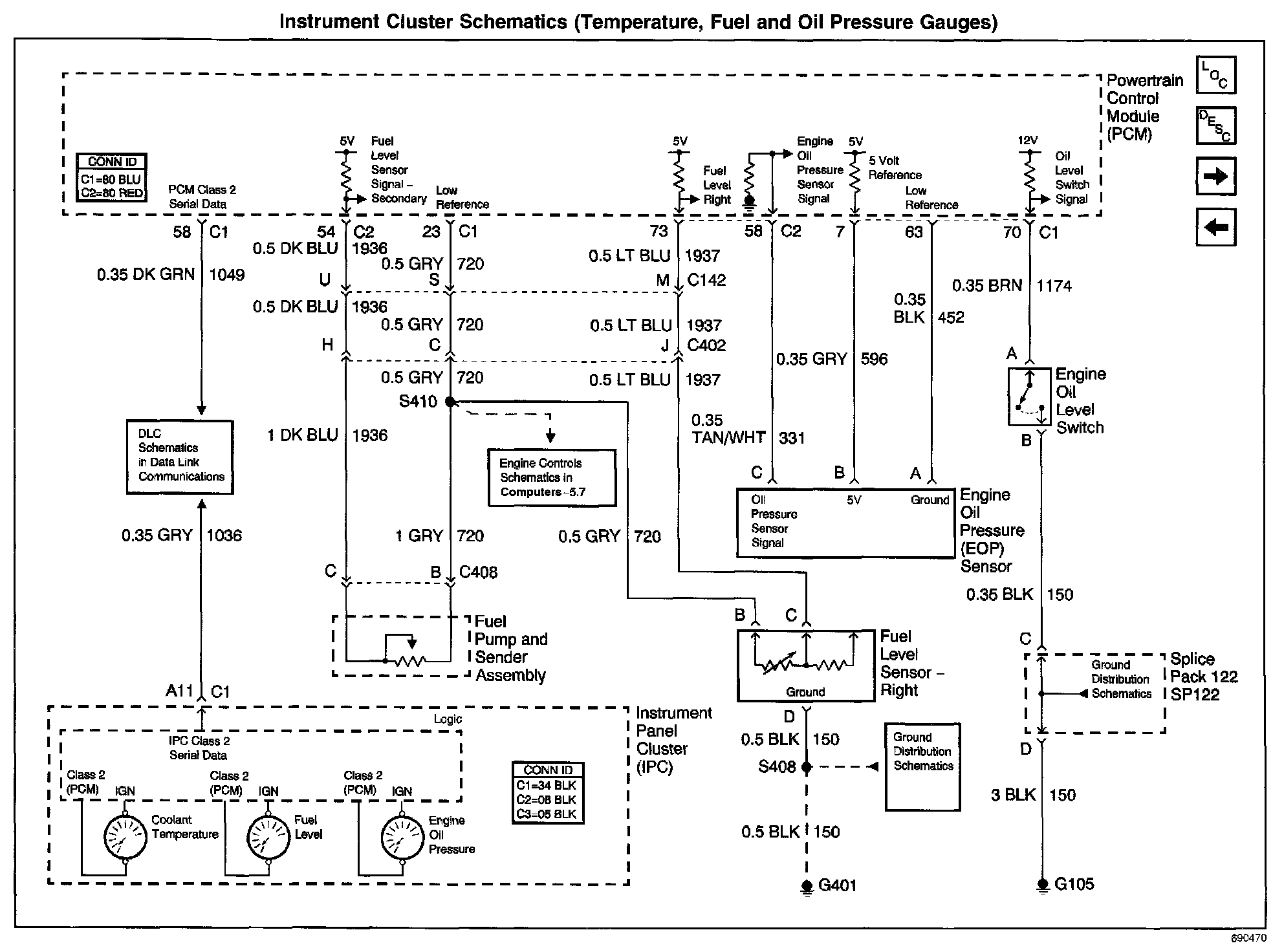

Instrument Cluster Schematics: Temperature, Fuel And Oil Pressure Gauges:
