Home >> Chevrolet >> 2002 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Lighting and Horns >> License Plate Lamp >> Diagrams

License Plate Lamp: Diagrams

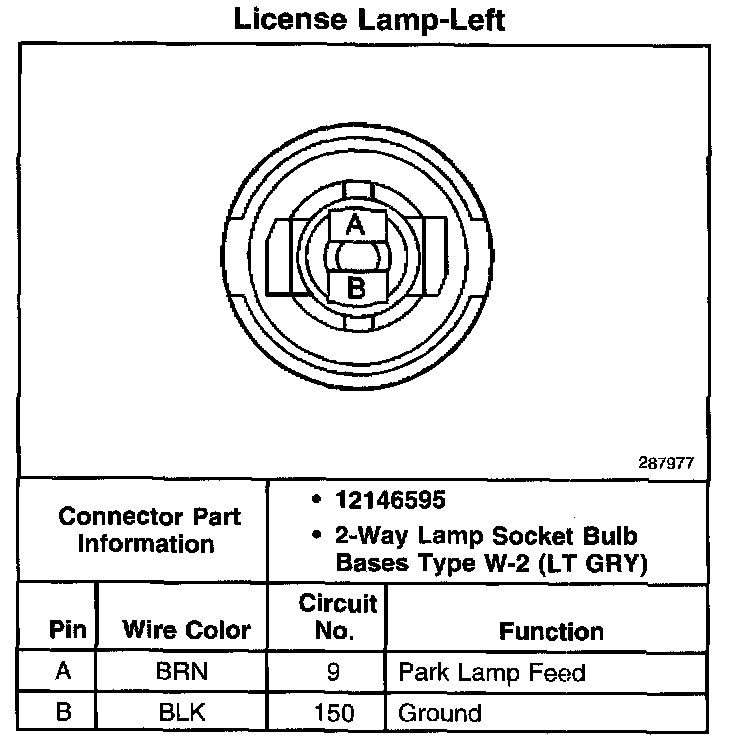

License Lamp - Left:

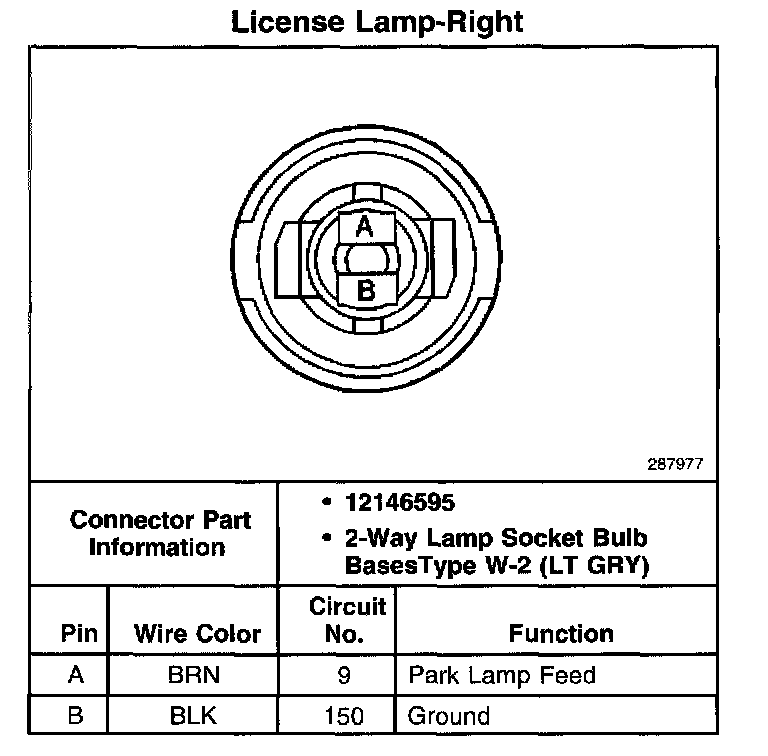

License Lamp - Right:
