Turn Signal Switch Housing - Assemble

Turn Signal Switch Housing - Assemble - Off Vehicle (Telescoping Column)

Important: The switch mounting bracket must be pressed firmly against the steering column tilt head in order for the screws from the turn signal and multifunction switch assembly screws to line up.

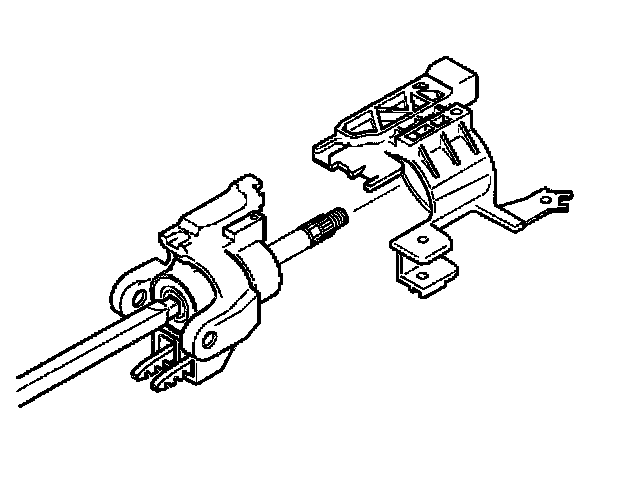

1. Slide the turn signal switch housing onto the steering column.

Caution: Refer to SIR inflator module coil caution in Service Precautions.

2. Slide the windshield wiper and washer switch assembly into the signal switch housing.
3. Install the turn signal and multifunction switch assembly only.
4. Install the steering column tilt head components.
5. Enable the inflatable restraint steering wheel module.
