Radio/Stereo: Service and Repair
RADIO REPLACEMENTREMOVAL PROCEDURE
1. Remove the front floor kick-up panel.
2. Remove the cover from the I/P electrical center.
3. Remove the RDO/CD MiniFuse(R) #5 from the I/P electrical center.
4. Remove the console.
5. Remove the I/P accessory trim plate.

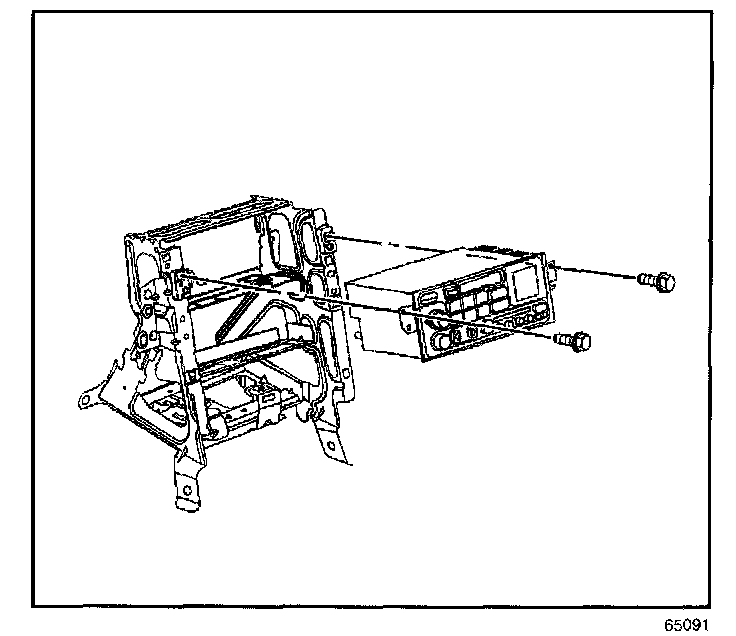

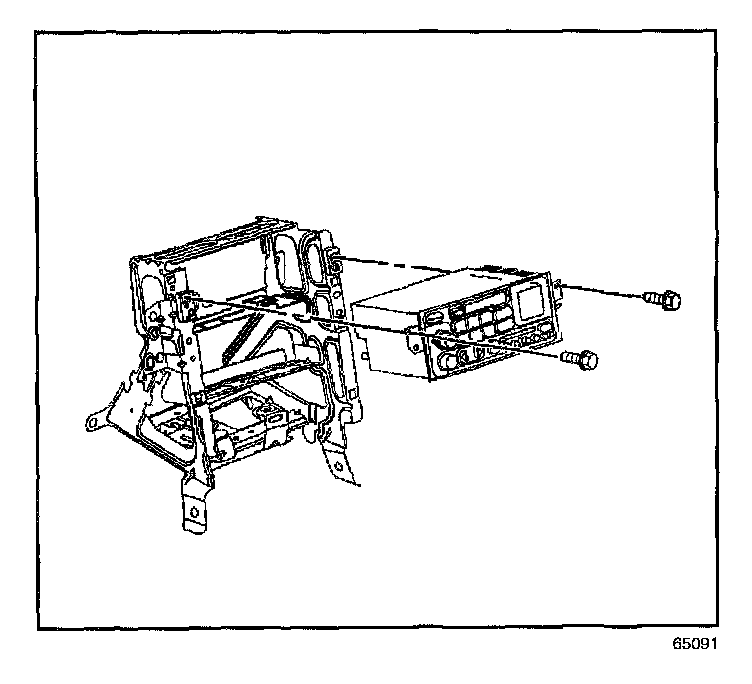

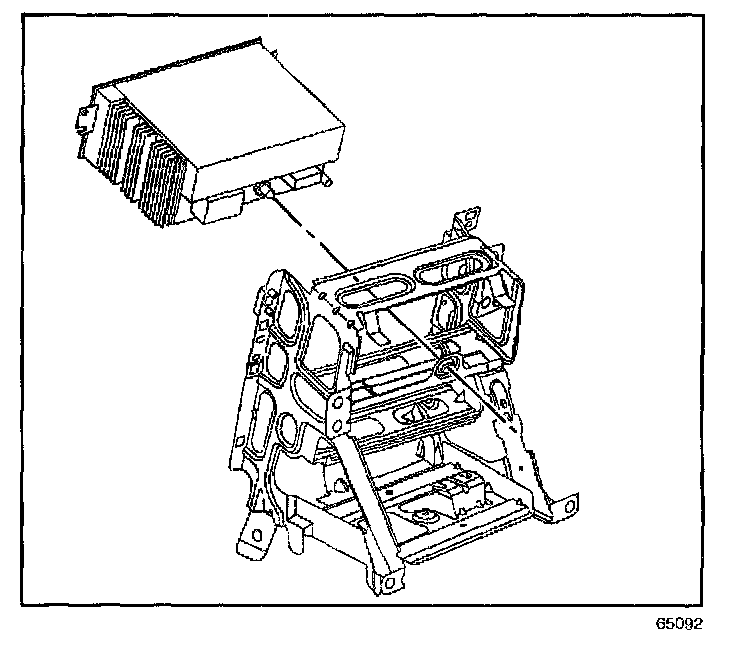

6. Remove the screws retaining the radio control to the I/P center support bracket.
7. Begin to remove the radio control from the center support bracket enough to access the connectors at rear of the radio control.

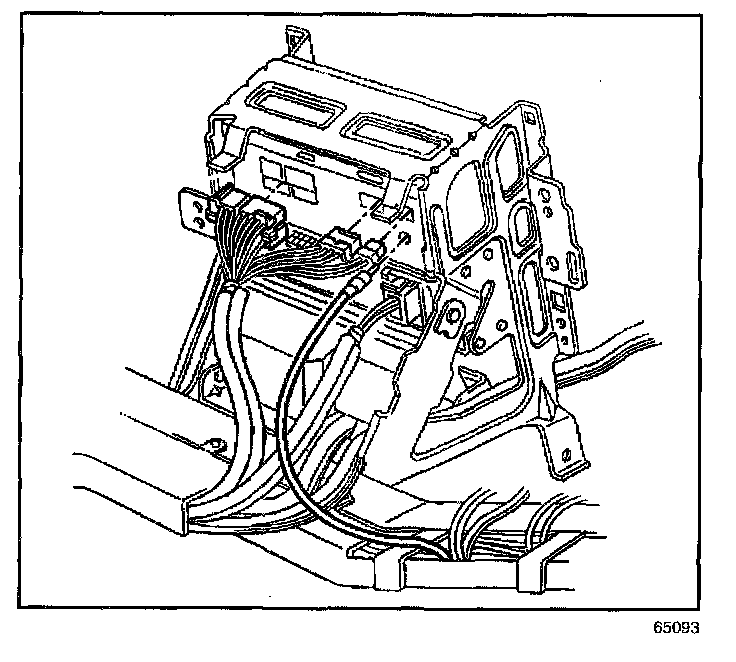

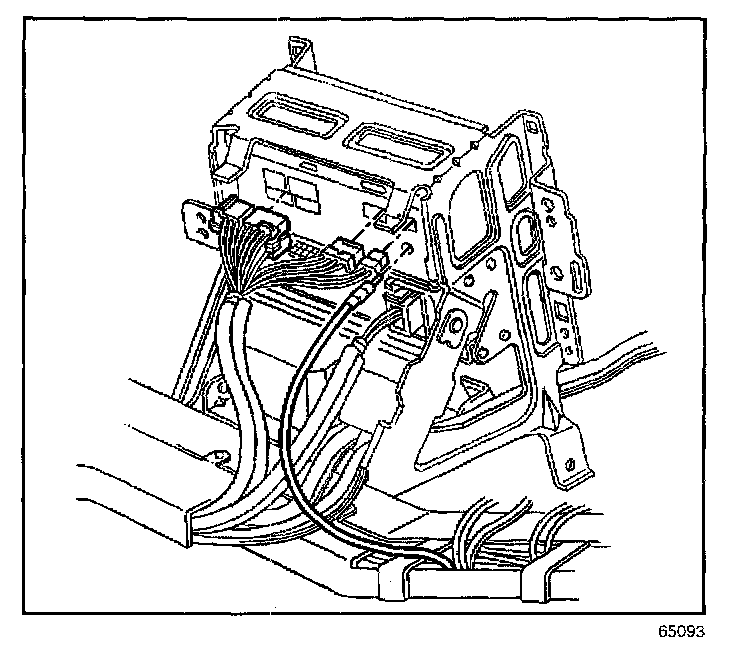

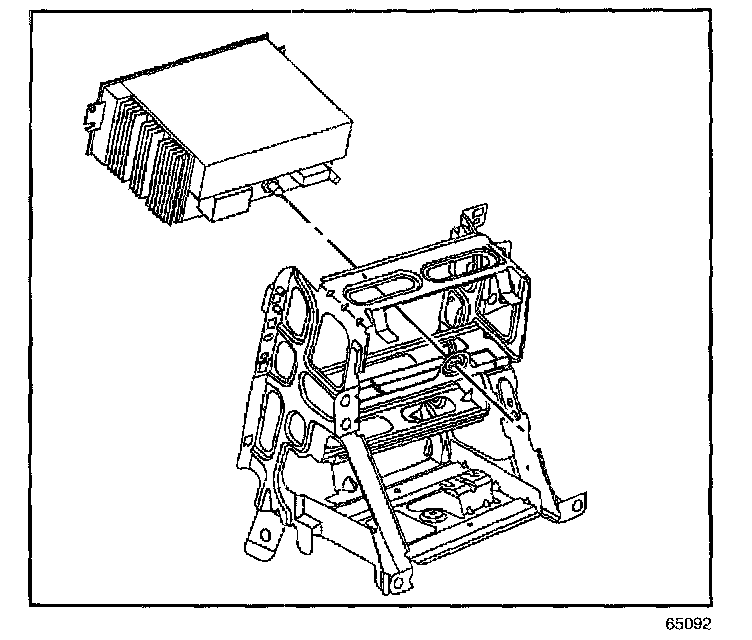

8. Disconnect the electrical/audio and coaxial cable connectors from the radio control.
9. Remove the radio control.
INSTALLATION PROCEDURE
1. Connect the electrical/audio and coaxial cable connectors to the radio control.
2. Install the radio control into position in the I/P center support bracket.
Align the radio control locator tab into the center support bracket locator hole.
NOTE: Refer to Fastener Notice in Service Precautions.
3. Install the radio control retaining screws.
Tighten
Tighten the radio control retaining screws to 2.5 N.m (22 lb in).
4. Install the I/P accessory trim plate.
5. Install the console.
6. Install the RDO/CD MiniFuse(R) #5 to the I/P electrical center.
7. Install the cover to the I/P electrical center.
8. Install the front floor kick-up panel.
